Thimbles are use as protection of steel wire rope loops.

Design: Forged.

  • Marking: According to standard
  • Finish: Galvanized
  • Standard: EN 13411-1
    DIN 3090 replaced by EN 13411-1

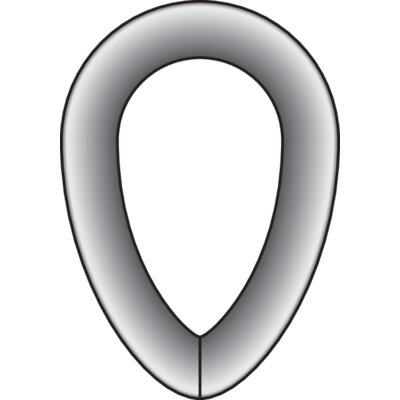

4921_e_225mm
4921m_e _225mm
Select a row from the table below, then click the add to quote button

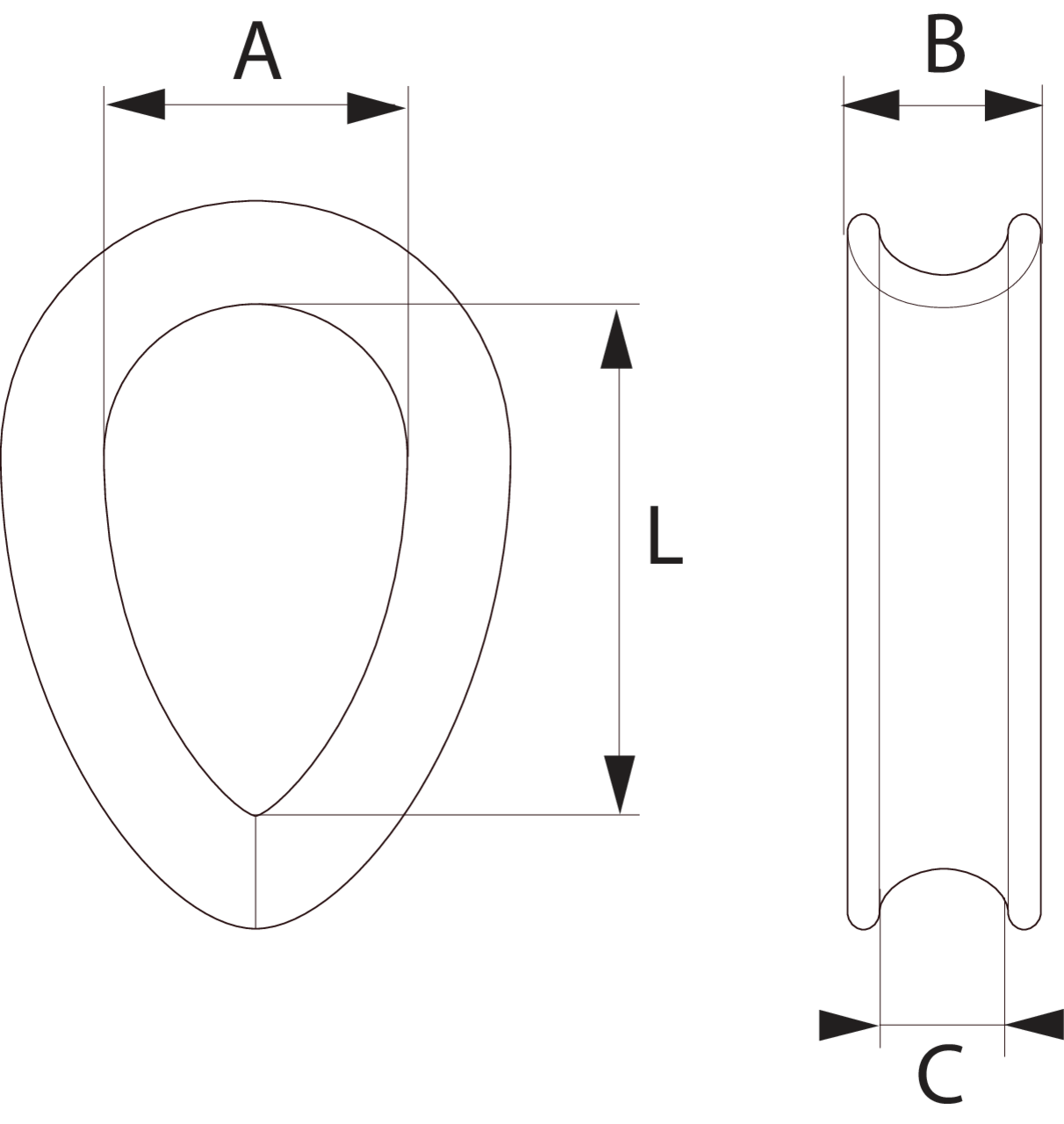

Part Code Rope diameter
mm
A
mm
L
mm
B
mm
C
mm
Weight
kg/100pc
KOD06 6 15 30 10 7 3
KOD08 8 20 40 13 9 7,1
KOD10 10 25 50 15 11 17
KOD12 12 30 60 19 13 24
KOD14 14 35 70 22 16 36
KOD16 16 40 80 25 18 50
KOD18 18 45 90 27 20 62
KOD20 20 50 100 30 22 90
KOD22 22 55 110 33 24 100
KOD24 24 60 120 35 26 130
KOD26 26 65 130 45 29 220
KOD28 28 70 140 48 31 240
