A combination of wire rope clamp and thimble, approved for application in elevators and hoists. Two part thimble and recessed bolts, for easy mounting.
Design: Annealed casting. Bolts and nuts in grade 8.8.




  • Finish: Galvanized
3503_e_225mm

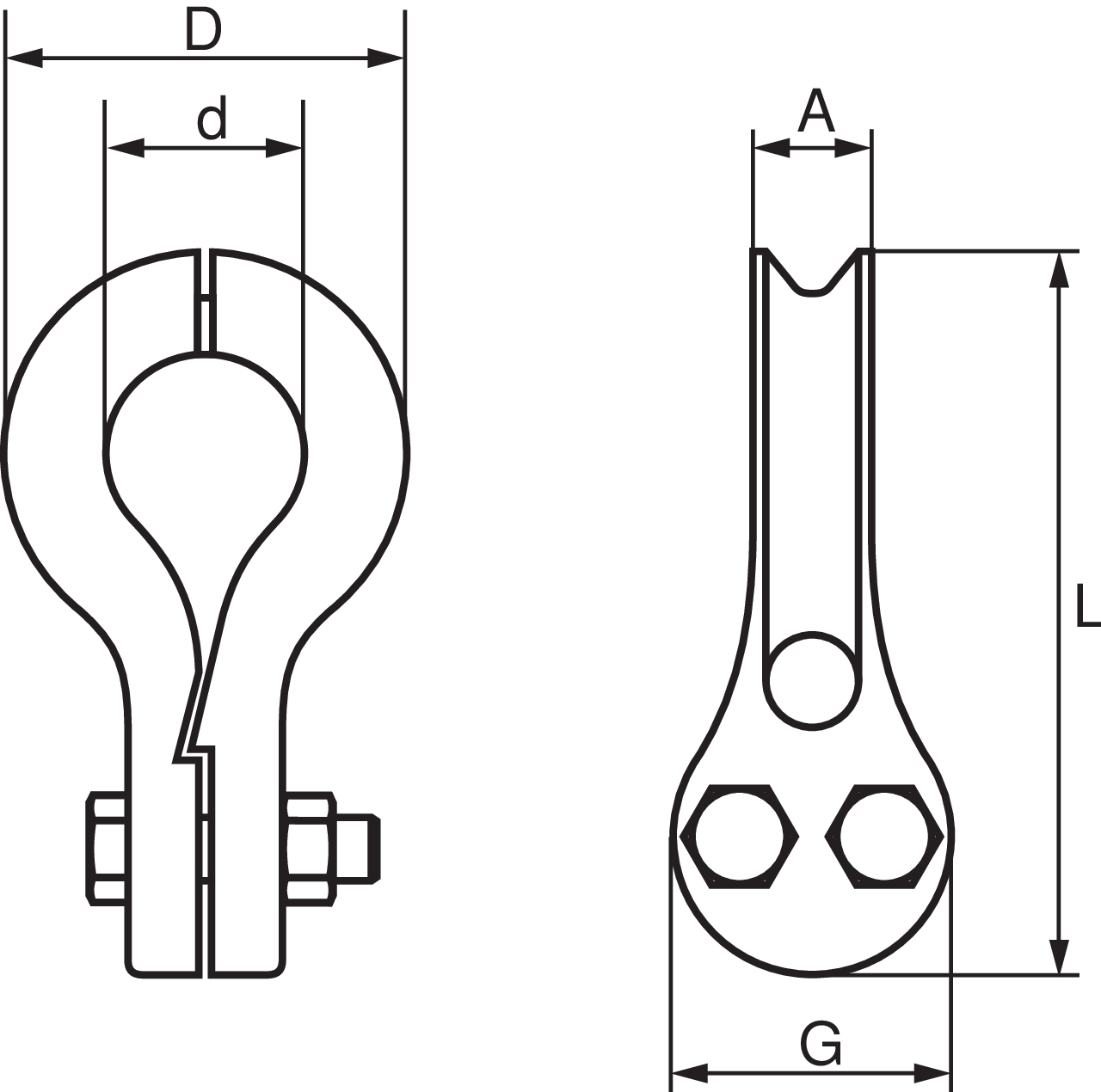

3503m_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope Ø
mm
A
mm
D
mm
G
mm
L
mm
Weight
kg
LUKO6 5-6 12 22 28 75 0.2
LUKO9 7-9,5 18 30 40 110 0.4
LUKO12 10-12,5 24 40 52 155 1
LUKO16 13-16,5 29 50 65 200 2
LUKO20 17-20 37 64 80 244 3.8
