Haklift

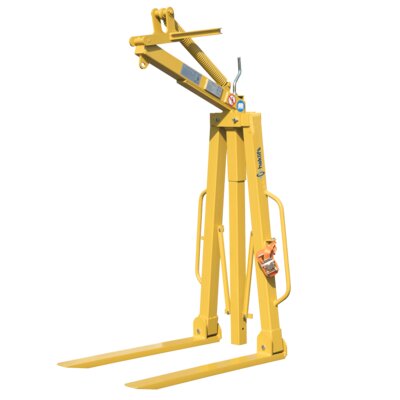

For handling of standard pallets from the long side. Thanks to the spring-loaded lifting eye, the pallet fork is self-balancing, which means that the forks are always horizontal, regardless of whether the pallet fork is empty or loaded. Forks are equipped with articulations so that they always remain in optimal position. The width of the forks can be adjusted with the crank, also when folded for transportation.



  • Material: Beam and plate of high-strength structural steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13155
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

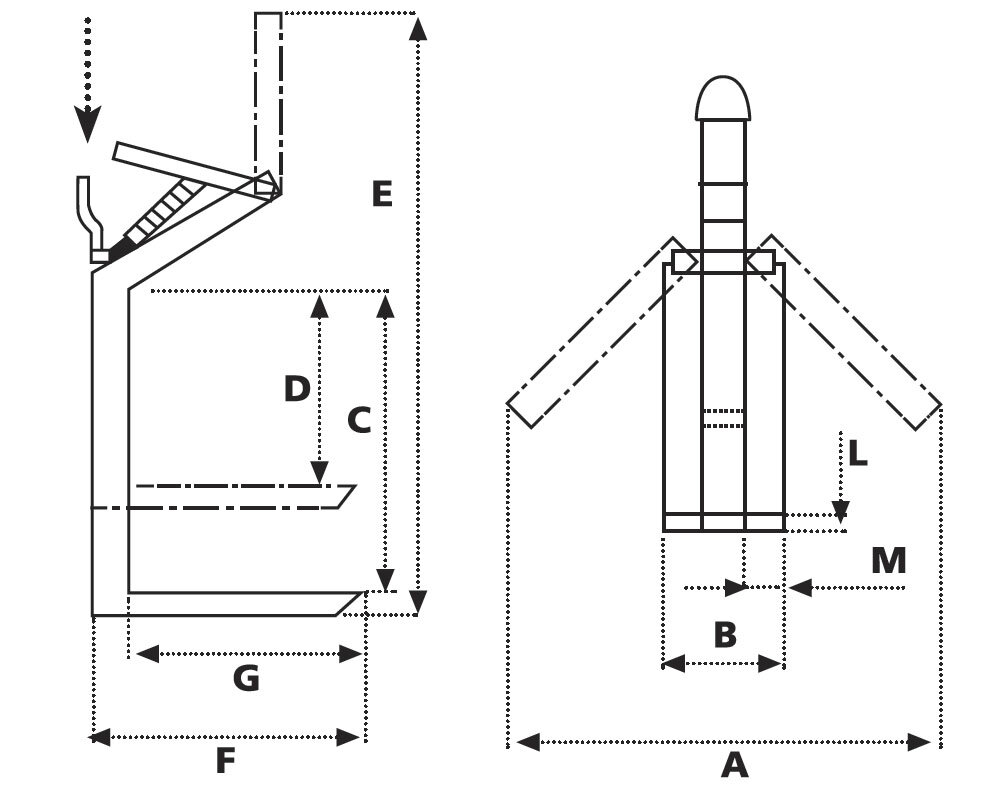

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
L
mm
M
mm
Weight
kg
NOH6001C 0.6 1,600 340 1,300 1,200 2,360 1,080 1,000 25 80 95
NOH10001C 1 1,600 340 1,300 1,200 2,360 1,080 1,000 25 90 120
NOH15001C 1.5 1,600 340 1,750 1,200 2,360 1,080 1,000 30 90 130
NOH20001C 2 1,600 340 1,300 1,200 2,360 1,080 1,000 35 100 150
NOH25001C 2.5 1,600 380 1,300 1,200 2,360 1,090 1,000 35 120 180
NOH30001C 3 1,600 380 1,300 1,200 2,360 1,090 1,000 35 120 185
