Haklift

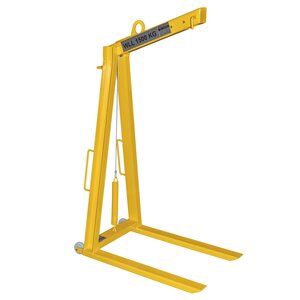

For handling of standard pallets from the long side. Thanks to the spring-loaded lifting eye, the pallet fork is self-balancing, which means that the forks are always horizontal, regardless of whether the pallet fork is empty or loaded. The width of the forks can be adjusted with the crank, also when folded for transportation.



  • Material: Beam and plate of high-strength structural steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13155
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
L
mm
M
mm
Weight
kg
NOH10001B 1 1,600 340 1,300 1,200 2,360 1,080 1,000 25 90 120
NOH15001B 1.5 1,600 340 1,300 1,200 2,360 1,080 1,000 30 90 130
NOH20001B 2 1,600 340 1,300 1,200 2,360 1,080 1,000 35 100 146
NOH25001B 2.5 1,600 380 1,300 1,200 2,360 1,090 1,000 35 120 170
NOH30001B 3 1,600 380 1,300 1,200 2,360 1,090 1,000 35 120 175
NOH6001B 0.6 1,600 340 1,300 1,200 2,360 1,080 1,000 25 80 95
