Haklift

Concrete mass lifting and precise dispensing. the dispensing mechanism operates by of a lever arm.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Note: Lifting chain slings ordered separately
Select a row from the table below, then click the add to quote button

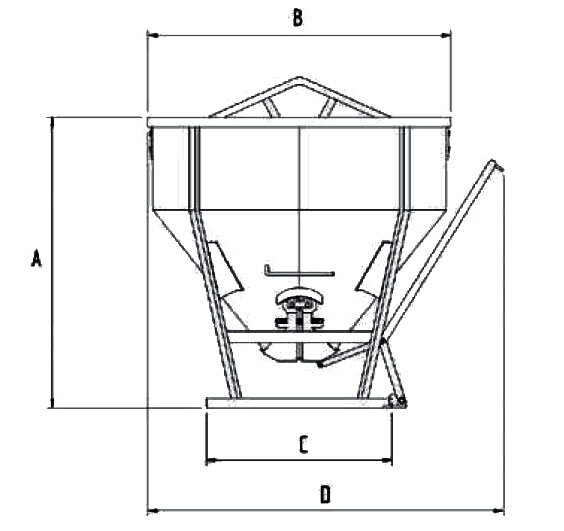

Part Code WLL
ton
Volume
liter
A
mm
B
mm
C
mm
D
mm
Weight
kg
BETNOS1000 2.6 1,000 1,300 1,250 750 1,450 160
BETNOS1500 3.9 1,500 1,800 1,250 750 1,450 230
BETNOS200 0.52 200 620 920 750 1,050 50
BETNOS300 0.78 300 780 920 750 1,050 60
BETNOS500 1.3 500 950 1,050 880 1,200 82
