Haklift

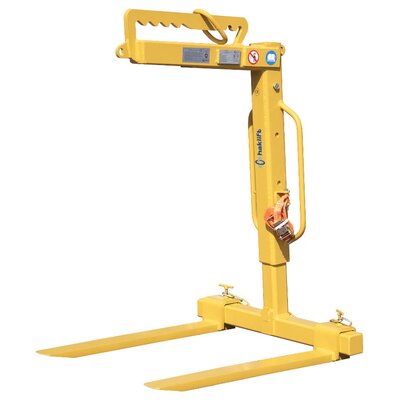

For handling of standard pallets from the long side. Crane fork's height and width of the forks can be adjusted. Manual balancing of the load.



  • Material: Beam and plate of high-strength structural steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13155
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

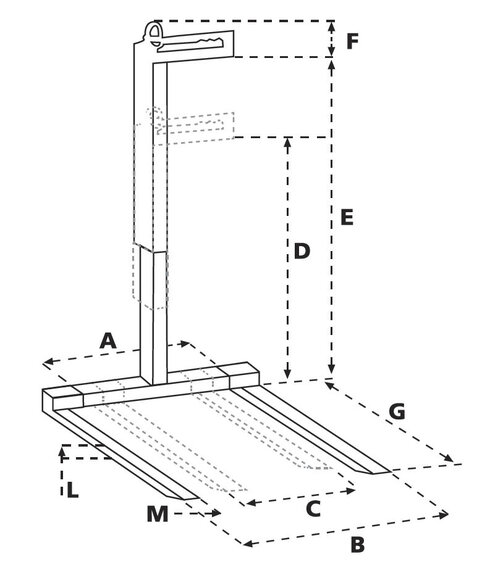

Part Code WLL
ton
Height
m
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
L
mm
M
mm
Weight
kg
NOH1500SK 1,5 1,6 1 000 1 000 300 1 000 1 600 450 1 000 30 90 140
NOH2000SK 2 1,8 1 000 1 000 300 1 200 1 800 450 1 000 35 100 160
