Haklift

For handling of standard pallets from the long side.



  • Material: Beam and plate of high-strength structural steel
  • Marking: According to standard, CE-marked
  • Standard: EN 13155
  • Note: Min. load at least 20% of the max. load!
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

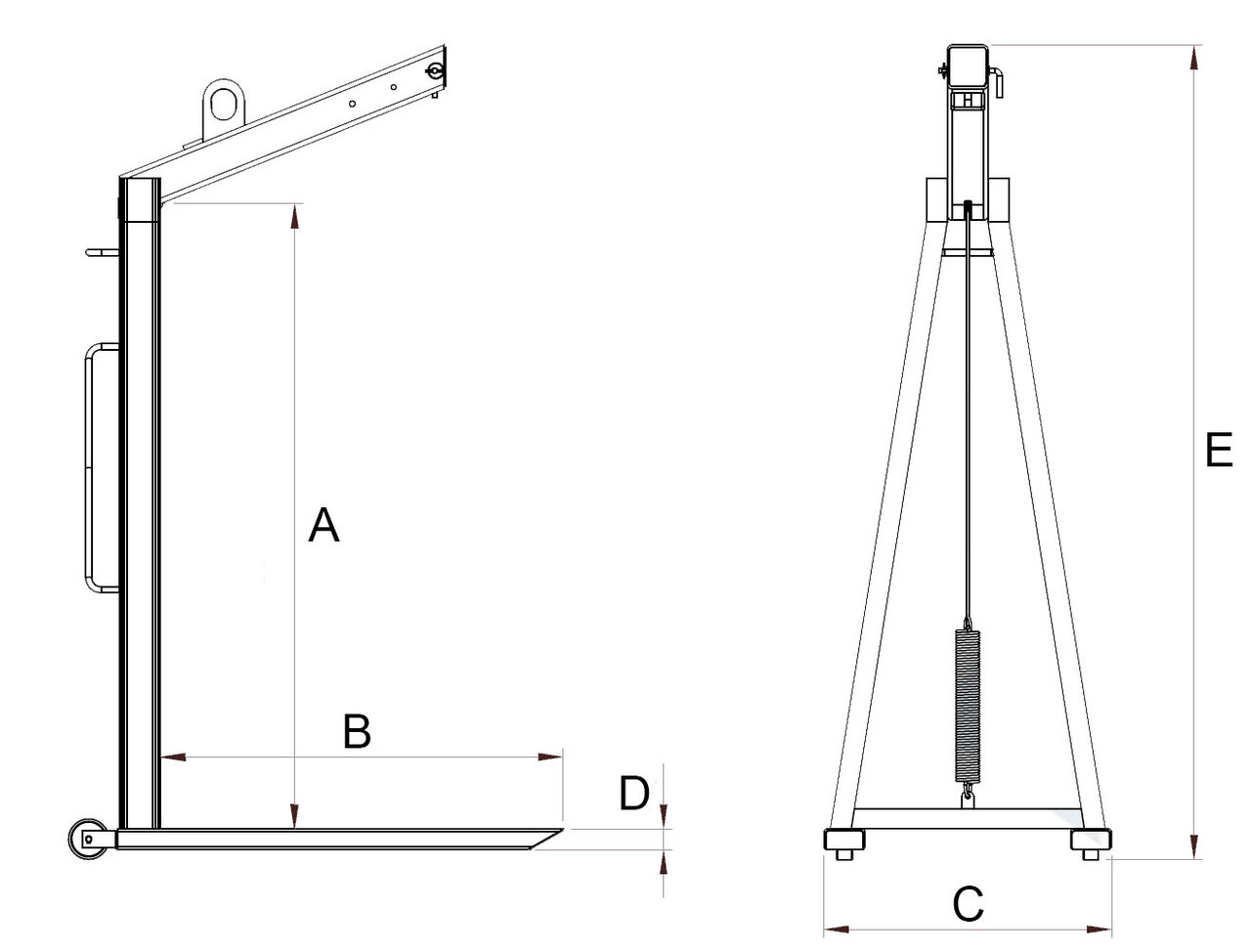

Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
E
mm
Weight
kg
NOH15001 1.5 1,500 980 700 50 1,985 96
