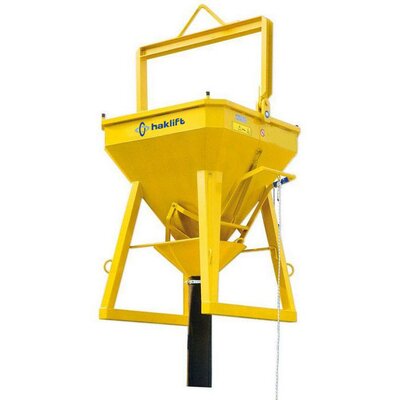

Haklift

Concrete mass lifting and precise dispensing. the dispensing mechanism operates by of a lever arm.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Note: Lifting chain slings ordered separately
Select a row from the table below, then click the add to quote button

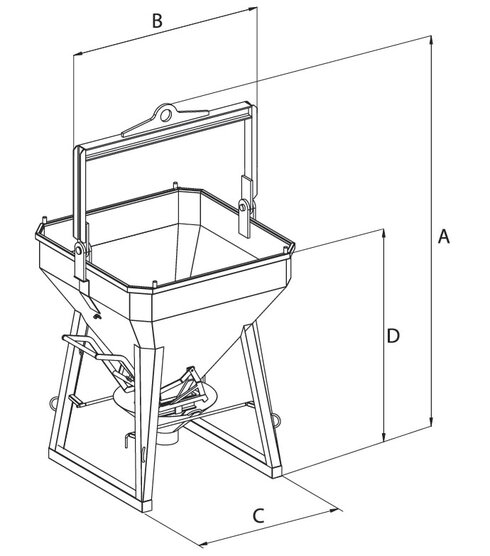

Part Code WLL
ton
Volume
liter
A
mm
B
mm
C
mm
D
mm
Weight
kg
BETNOS500SUK 1.3 500 2,387 1,128 1,000 1,505 225
BETNOS1000SUK 2.6 1,000 2,807 1,447 1,200 1,712 340
BETNOS1500SUK 3.9 1,500 3,048 1,647 1,300 1,925 420
BETNOS2500SUK 6.5 2,500 2,008 1,780 1,780 1,927 546
