The Tiger CSS safety screw cam clamp with double eye anchor points & safety torque feature is suitable for many applications. This screw cam clamp is for all-purpose uses, such as lifting, lateral pulling and turning over materials. Adequacy of tightening can be visually confirmed by the visual torque safety feature.

  • Spherical universal designed screw cam provides an extra powerful clamping force on a workpiece even when vibrations occur during operation.
  • Cam holder and collar have phosphorescent (glow-in-the dark) paint for easy recognition of adequate torque tightening.
  • No tools required – integrated adjusting screw spindle

Certification:
Each unit comes fully certified with a test certificate or an EC Declaration of Conformity stating compliance with the essential health and safety requirements of the Machinery Directive 2006/42/EC.

  • Material: Steel
  • Marking: CE-marked
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

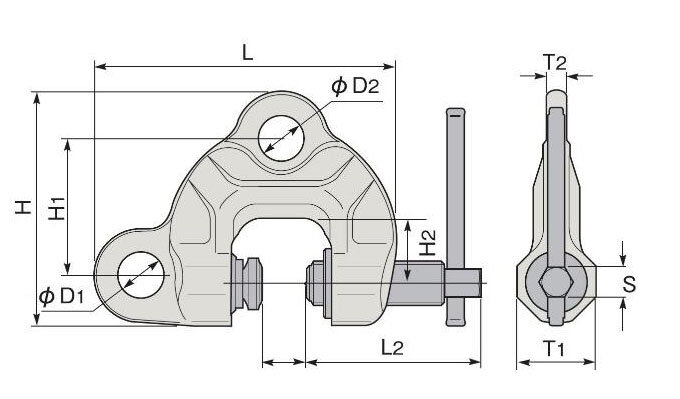

Part Code WLL
ton
Jaw width
mm
D1
mm
D2
mm
H
mm
H1
mm
H2
mm
L
mm
L2
mm
S
mm
T1
mm
T2
mm
Weight
kg
LTCSS05TI 0,5 0-25 27 27 121 72 30 158 89 17 46 13 1,9
LTCSS10TI 1 0-40 32 32 161 94 45 208 121 21 54 14 3,6
LTCSS20TI 2 0-40 36 32 177 105 45 227 121 21 60 18 4,8
LTCSS32TI 3,2 0-40 45 35 196 119 50 252 136 21 64 20 7
LTCSS63TI 6,3 0-50 50 41 225 132 55 291 151 21 90 43 17
