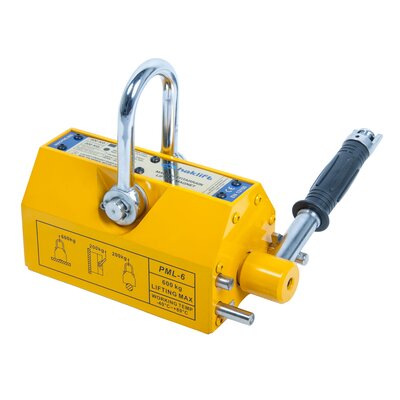

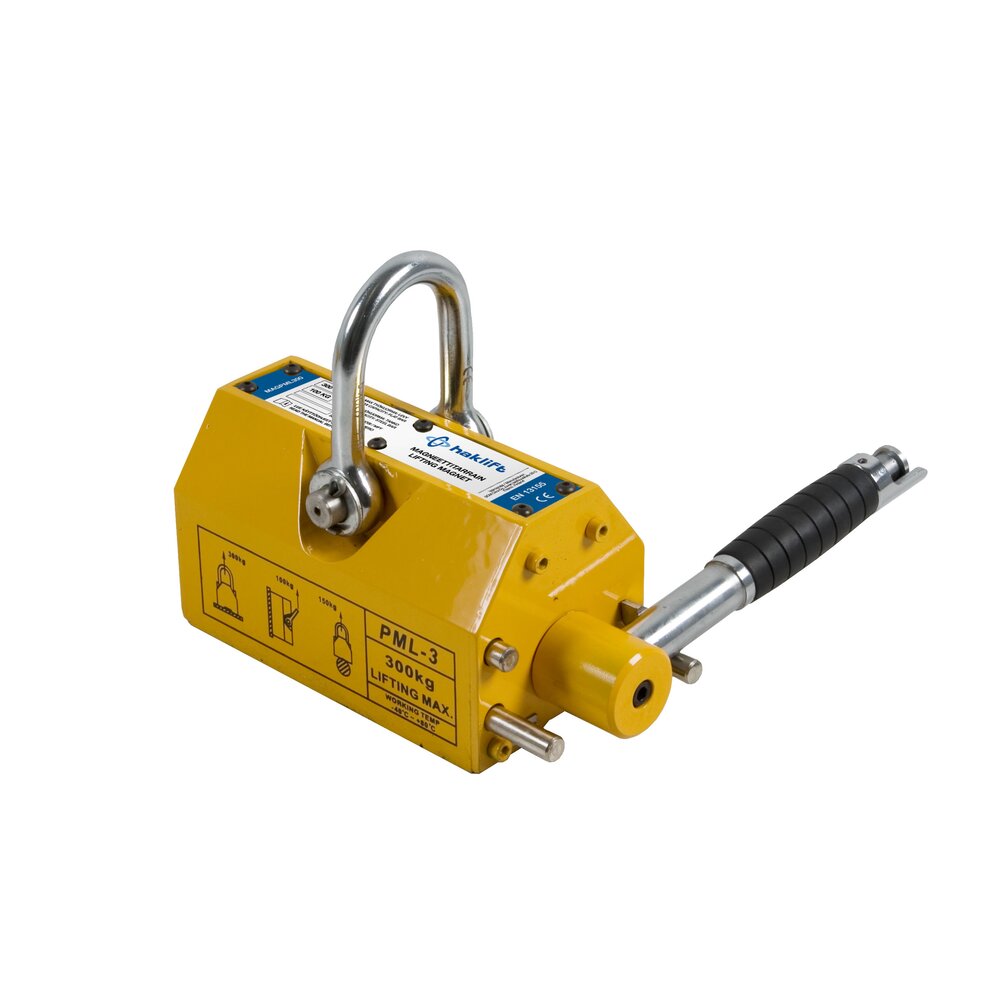

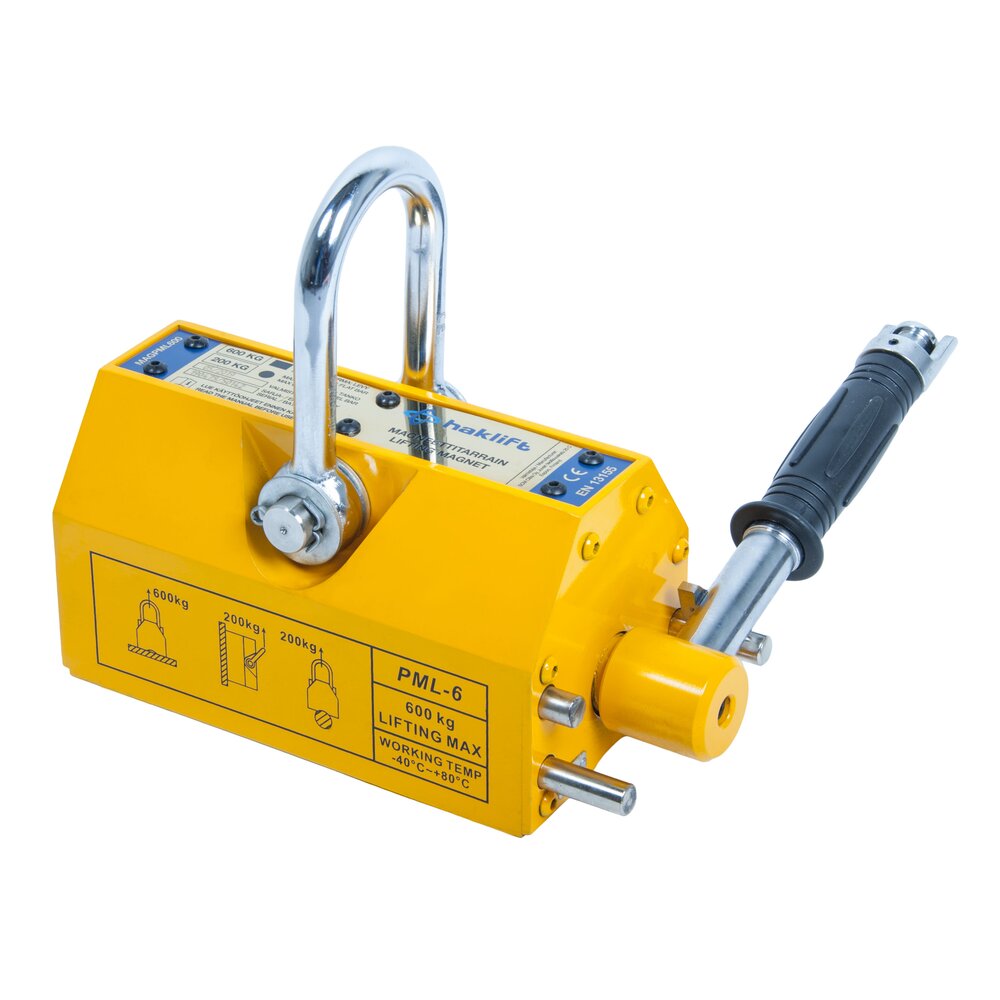

The permanent lifting magnet provides a fast and efficient solution for lifting and handling steel plates, pipes, and round steel bars. The hinged shackle helps keep the magnet securely attached to the load in various lifting positions. The rubber-coated handle ensures a comfortable grip, making the magnet an excellent choice for everyday material handling in industrial facilities, machine shops, and warehouses.
Especially suitable for
- Lifting and handling steel plates
- Handling pipes
- Lifting round steel bars
- Material handling in industrial facilities and machine shops
Safety factors
- 100 - 300 kg clamps: 3.5:1
- 600 - 2,000 kg clamps: 3:1
- Material: Steel
- Marking: According to standard, CE-marked
- Temperature range: -40 - (+) 80 °C
- Finish: Painted, yellow
- Standard: EN 13155
- Note: Handles also available as a spare part
MIN. PLATE AND BAR MATERIAL THICKNESSES
| Produtc code | Min. plate thickness mm | Min. bar diameter mm |
| MAGPML100 | 30 | 55 |
| MAGPML300 | 40 | 70 |
| MAGPML600 | 50 | 80 |
| MAGPML1000 | 60 | 90 |
| MAGPML2000 | 70 | 100 |
SPARE PARTS
| Spare part (product code) | Description | Suitable for clamp (product code) |
| MAG100KAUV | Operating hand lever | MAGPML100 |
| MAG300KAUV | Operating hand lever | MAGPML300 |
| MAG600KAUV | Operating hand lever | MAGPML600 |
| MAG1000KAUV | Operating hand lever | MAGPML1000 |
| MAG2000KAUV | Operating hand lever | MAGPML2000 |
| MAGPML100NS | Lifting shackle | Incl. bolt and fasteners | MAGPML100 |
| MAGPML300NS | Lifting shackle | Incl. bolt and fasteners | MAGPML300 |
| MAGPML600NS | Lifting shackle | Incl. bolt and fasteners | MAGPML600 |
| MAGPML1000NS | Lifting shackle | Incl. bolt and fasteners | MAGPML1000 |
| MAGPML2000NS | Lifting shackle | Incl. bolt and fasteners | MAGPML2000 |
Also other spare parts available with a delivery time, ask our sales for more information
