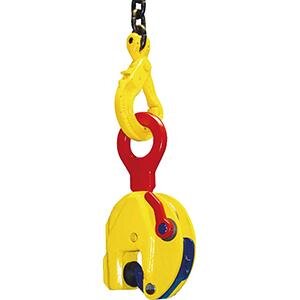

Haklift

For horizontal lifting of steel plates in pairs (only one plate at a time).



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button
Part Code WLL/pair
ton
Jaw opening
mm
A
mm
B
mm
C
mm
D
mm
Weight
kg
LTVABT1500 1.5 0 – 50 127 90 15 30 4.3
LTVABT3000 3 0 – 50 220 120 30 36 7.7
LTVABT5000 5 0 - 55 185 - 58 - 7.5

info / downloads
