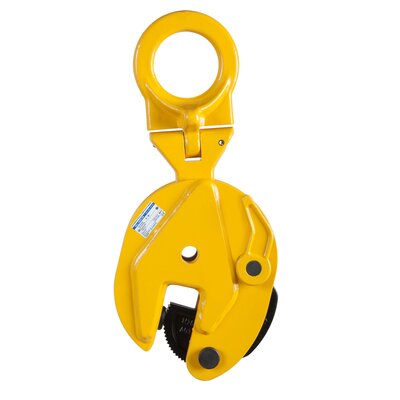

Haklift

For vertical lifting and turning of steel plates.



  • Features: Note! Lifting pieces weight must be minimum of 20% of maximum WLL!
  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button

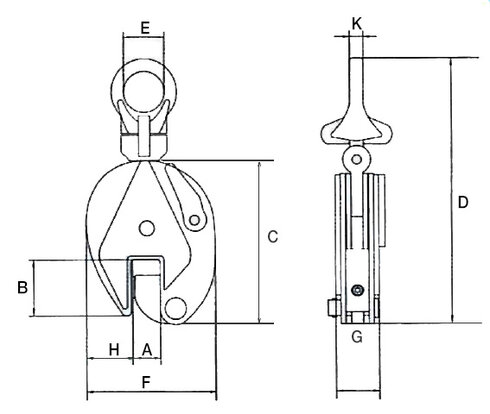

Part Code WLL
ton
Jaw width
mm
Test Load
kN
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
K
mm
Weight
kg
LTABT08 0,8 0-15 15,69 17 44 128 212 30 103 36 35 10 1,9
LTABT10 1 0-20 19,61 22 63 167 295 48 138 50 51 12 4,5
LTABT20 2 0-25 39,23 27 76 202 370 60 164 52 56 16 7,5
LTABT30 3 0-30 58,84 32 85 237 418 65 193 78 59 20 14,8
LTABT45 5 0-50 98,07 55 90 262 480 76 232 90 59 20 23
LTABT80 8 0-45 156,91 45 112 330 600 85 263 100 77 22 37
