Multi driven hoist

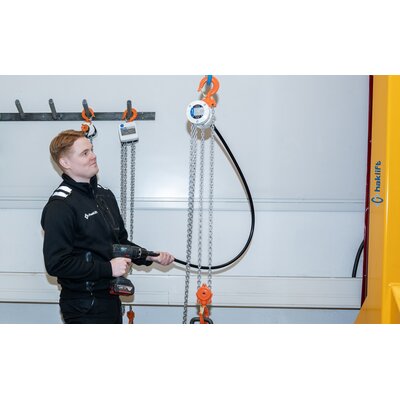

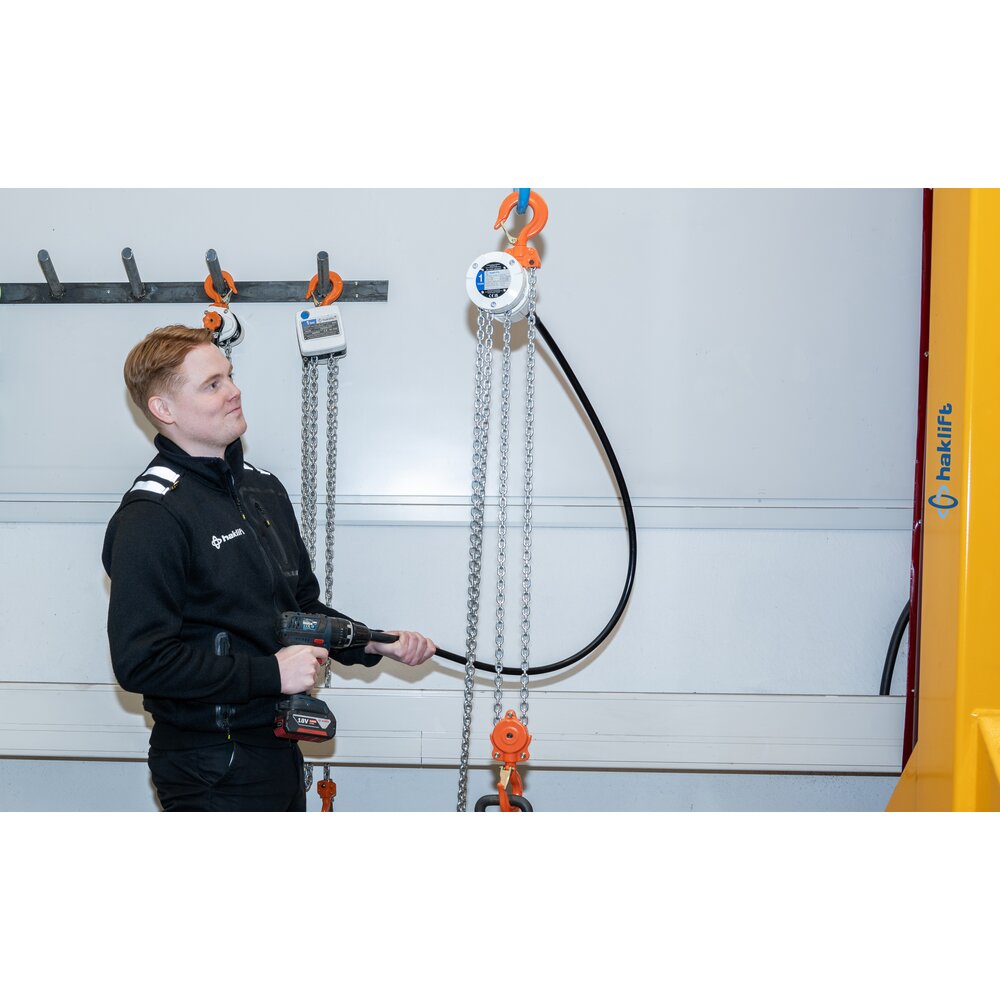

Small aluminium multi driven chain hoists with a wide range of lifting applications. Can be used with a drill machine. The drill can be connected with 1.5-3 mtr long operating cable in the hoist, so the load can be easily lifted and lowered with the help of the drill machine.

Can also be used dire

покажи повече

0,25
  • 0,25
  • 0,5
  • 1
Part code: KTP250
Продуктов номерWLL
тон
Височина на повдигане
м
Number of fallsСкорост
м/мин
Верига
мм
Тегло
кг
Delivery timeЧертежAdd to cartОще данни
KTP2500,25312,23,2 x 93,51
Продуктов номерKTP250
WLL
тон
0,25
Височина на повдигане
м
3
Number of falls1
Скорост
м/мин
2,2
Верига
мм
3,2 x 9
Тегло
кг
3,5
Delivery time1

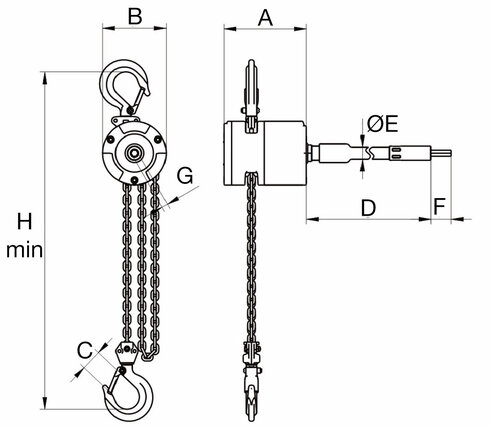

Чертеж
KTP5000,5312,24,3 x 125,451
Продуктов номерKTP500
WLL
тон
0,5
Височина на повдигане
м
3
Number of falls1
Скорост
м/мин
2,2
Верига
мм
4,3 x 12
Тегло
кг
5,45
Delivery time1
Чертеж
KTP10001321,14,3 x 129,151
Продуктов номерKTP1000
WLL
тон
1
Височина на повдигане
м
3
Number of falls2
Скорост
м/мин
1,1
Верига
мм
4,3 x 12
Тегло
кг
9,15
Delivery time1
Чертеж
  • Attribute icon

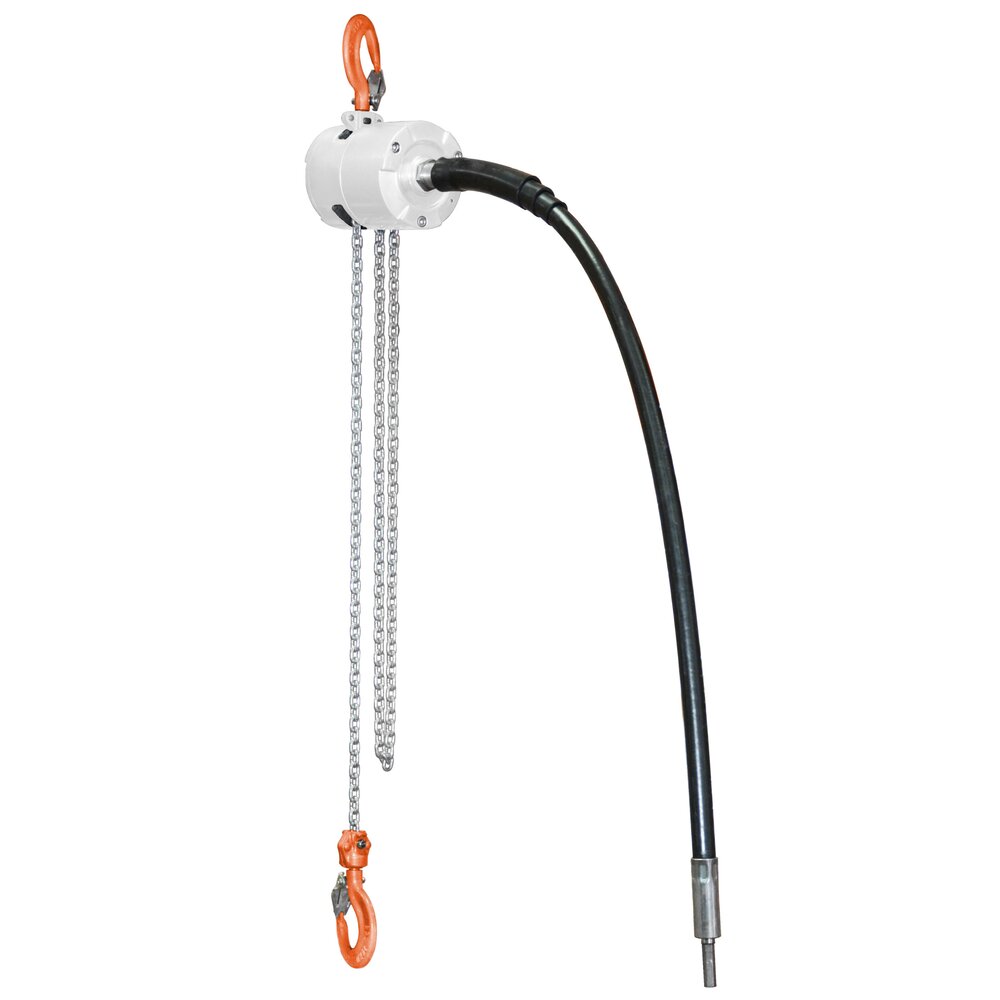

Small aluminium multi driven chain hoists with a wide range of lifting applications. Can be used with a drill machine. The drill can be connected with 1.5-3 mtr long operating cable in the hoist, so the load can be easily lifted and lowered with the help of the drill machine.

Can also be used directly from the shaft (8 mm hexagonal) coming out of the side of the hoist frame, either with a drill or manually with a comb or 1/2" ratchet handle. The lifting and lowering speed is directly dependent on the rotation speed of the drill, so the speed is always controlled by the drill's own controls.

The standard lifting height is 3 mtr. Other lifting heights can be supplied quickly. The upper and lower hooks are equipped with a swivel.

  • Маркировка: CE - маркировка
