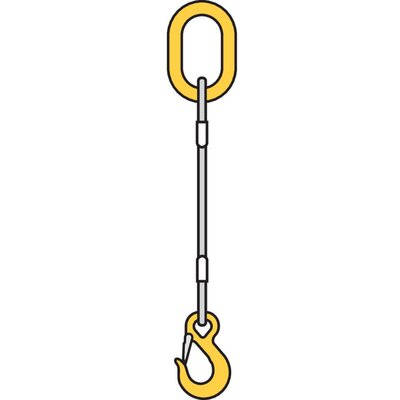

• The steel wire rope is equipped with pressing buckles, master ring and a latch hook
  • wire rope strength 1770 N / mm2
  • also available with spliced connections, larger workloads and special ends, ask more about our sales

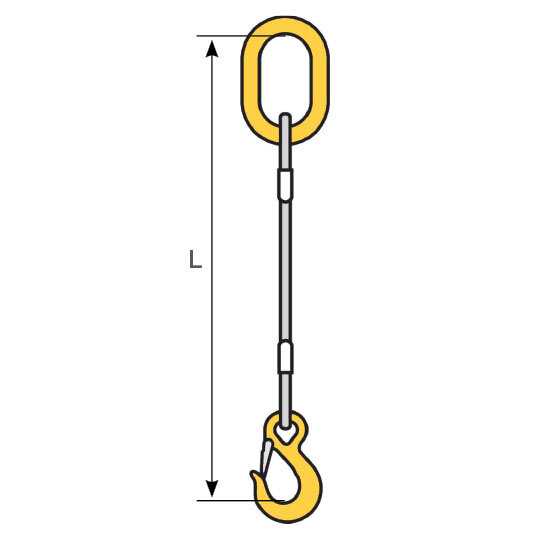

Note! The last two digits of the product code indicate the length (L), so tell the length of the sling when ordering.



  • Features: Steel core
  • Rope construction: 6X36-IWRC
  • Marking: CE-marked
  • Finish: Rope, hot dip galvanized | Components, painted yellow
    Select a row from the table below, then click the add to quote button
    Part Code WLL straight lift
    ton
    Ø wire rope
    mm
    TER10601 0,35 6
    TER10801 0,7 8
    TER11001 1,05 10
    TER11201 1,55 12
    TER11401 2,12 14
    TER11601 2,7 16
    TER11801 3,4 18
    TER12002 4,35 20
    TER12202 5,2 22
    TER12402 6,3 24
    TER12602 7,2 26
    TER12802 8,4 28
    TER13002 9,7 30
    TER13202 11 32
    TER13603 14 36
    TER14003 17 40
    TER14403 21 44
    TER14803 25 48
    TER15203 29 52
    TER15603 33,5 56
    TER16003 39 60

    Working load limits (WLL)

    Rope
    WLL tons
    Ø

     Straight lift

    Information icon

    U-lift

    mm
    Straight lift
    Choke hitch
    Basket hitch
    6
    0,35
    0,28
    0,7
    8
    0,7
    0,55
    1,4
    10
    1,05
    0,85
    2,1
    12
    1,55
    1,2
    3,1
    14
    2,12
    1,7
    4,2
    16
    2,7
    2,2
    5,4
    18
    3,4
    2,7
    6,8
    20
    4,35
    3,4
    8,7
    22
    5,2
    4,1
    10,4
    24
    6,3
    5
    12,6
    26
    7,2
    5,8
    14,4
    28
    8,4
    6,7
    16,8
    32
    11
    8,8
    22
    36
    14
    11,2
    28
    40
    17
    13,6
    34
    44
    21
    16,8
    42
    48
    25
    20
    50
    52
    29
    23,2
    58
    56
    33,5
    26,8
    67
    60
    39
    31,2
    78
