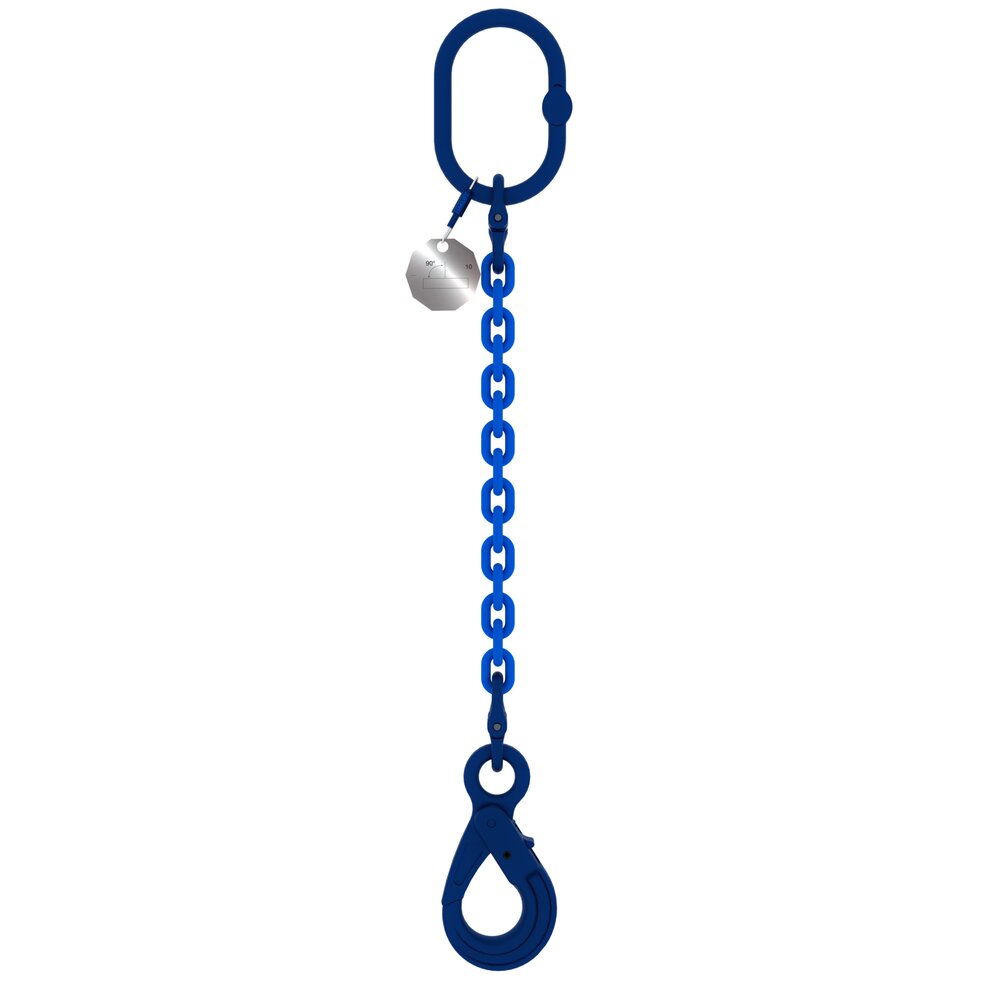

1-Leg chain sling assembly equipped with safety hook. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.
The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hook.
- Material: Steel
- Marking: CE-marked
- Temperature range: -29 - (+)205°C
- Finish: Painted, blue
- Warning: Not to be heat-treated
- Safety factor: 4:1
- Grade: 10
Chainsling Grade 12
EN 818-4, but with higher WLL
Safety Factor 4:1 | Chain Ø | 1-part | 2-part | 3-4-part | Endless | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
 |  |  |  |  |  |  |  |  |  | ||
| Straight pull | Choke hitch | Basket hitch | 0°−45° | 45°−60° | 0°−45° | 45°−60° | Straight pull | Choke hitch | Basket hitch | ||
| mm | Max last (WLL) i ton | ||||||||||
| 7 | 2,36 | 1,90 | 4,72 | 3,35 | 2,36 | 5,00 | 3,55 | 4,72 | 3,75 | 9,44 | |
| 8 | 3,00 | 2,36 | 6,00 | 4,25 | 3,00 | 6,30 | 4,50 | 6,00 | 4,75 | 12,00 | |
| 10 | 5,00 | 4,00 | 10,00 | 7,10 | 5,00 | 10,60 | 7,50 | 10,00 | 8,00 | 20,00 | |
| 13 | 8,00 | 6,30 | 16,00 | 11,20 | 8,00 | 17,00 | 11,80 | 16,00 | 12,50 | 32,00 | |
| Factor (KL) | 1 | 0,8 | 2 | 1,4 | 1 | 2,1 | 1,5 | 2 | 1,6 | 4 | |
| When a multi-leg sling is used in a chocker hitch, reduce the values by 20% | |||||||||||
