The DSR lifting ring is a double swivel ring. It is composed of a GRADUP lifting ring designed for rotations under load. Its double swivel ensures perfect alignment with the sling. The lifting ring can swivel 180° but has a rotating range of 360°. It can be used for any lifting configuration (straigt lift, with angle, tilting, rotating).

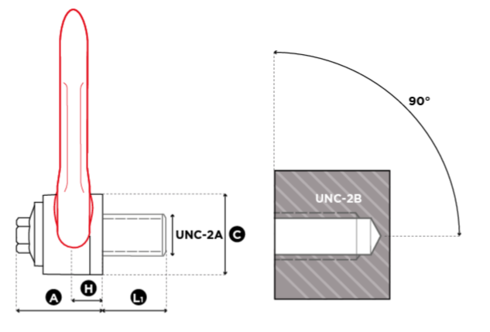

The DSR lifting ring is equipped with a protective crossbar and is approved for all lifting configurations from 0° to 90°.
It is manufactured in compliance with the REACH regulation and is also available as female and stainless-steel, quick lift and welding version.
Complies with the Machinery Directive 2006/42/CE
- Маркировка: Съгласно релевантният стандарт, CE - маркировка
-
Стандарт:
EN 1677-1
except grade/WLL
- Коефицент на безопасност: 5:1
