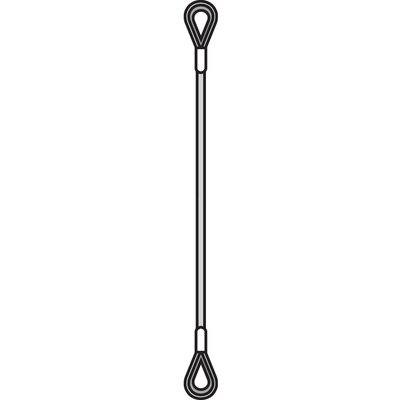

• The steel wire rope is equipped with pressing buckles and loop/thimble ends
  • wire rope strength 1770 N / mm2
  • also available with spliced connections, larger workloads and special ends, ask more about our sales

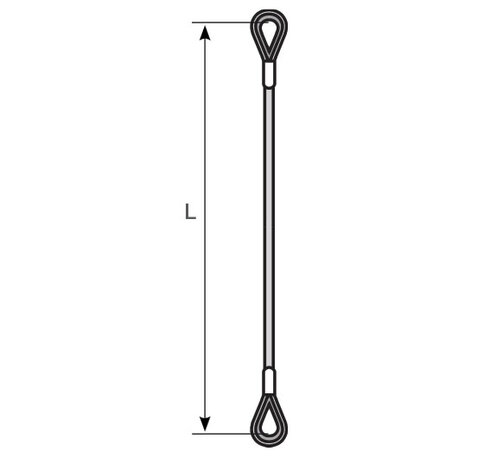

Note! The last two digits of the product code indicate the length (L), so tell the length of the sling when ordering.



  • Features: Steel core
  • Rope construction: 6X36-IWRC
  • Marking: CE-marked
  • Finish: hot dip galvanized
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button
Part Code WLL straight lift
ton
Ø wire rope
mm
TER70601 0.35 6
TER70801 0.7 8
TER71001 1.05 10
TER71201 1.55 12
TER71401 2.12 14
TER71601 2.7 16
TER71801 3.4 18
TER72002 4.35 20
TER72202 5.2 22
TER72402 6.3 24
TER72602 7.2 26
TER72802 8.4 28
TER73002 9.7 30
TER73202 11 32
TER73603 14 36
TER74003 17 40
TER74403 21 44
TER74803 25 48
TER75203 29 52
TER75603 33.5 56
TER76003 39 60

Working load limits (WLL)

Rope
WLL tons
Ø

 Straight lift

Information icon

U-lift

mm
Straight lift
Choke hitch
Basket hitch
6
0,35
0,28
0,7
8
0,7
0,55
1,4
10
1,05
0,85
2,1
12
1,55
1,2
3,1
14
2,12
1,7
4,2
16
2,7
2,2
5,4
18
3,4
2,7
6,8
20
4,35
3,4
8,7
22
5,2
4,1
10,4
24
6,3
5
12,6
26
7,2
5,8
14,4
28
8,4
6,7
16,8
32
11
8,8
22
36
14
11,2
28
40
17
13,6
34
44
21
16,8
42
48
25
20
50
52
29
23,2
58
56
33,5
26,8
67
60
39
31,2
78
