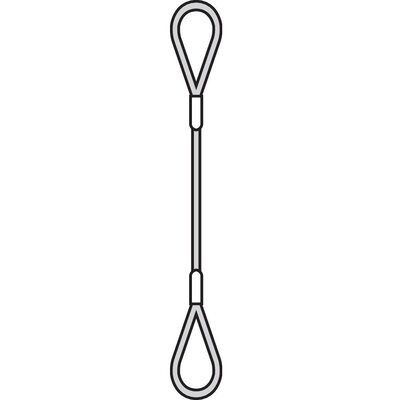

• The steel wire rope is equipped with pressing buckles and loop ends
  • wire rope strength 1770 N / mm2
  • also available with spliced connections, larger workloads and special ends, ask more about our sales

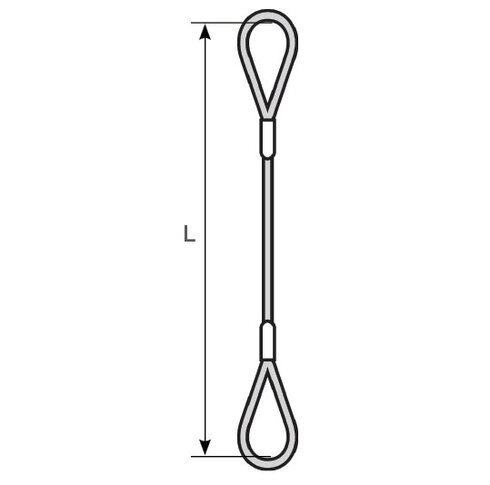

Note! The last two digits of the product code indicate the length (L), so tell the length of the sling when ordering.



  • Features: Steel core
  • Rope construction: 6X36-IWRC
  • Marking: CE-marked
  • Finish: hot dip galvanized
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button
Part Code WLL straight lift
ton
Eye diameter
mm
Ø wire rope
mm
TER60601 0.35 100 6
TER60801 0.7 150 8
TER61001 1.05 150 10
TER61201 1.55 200 12
TER61401 2.12 200 14
TER61601 2.7 250 16
TER61801 3.4 250 18
TER62002 4.35 300 20
TER62202 5.2 300 22
TER62402 6.3 350 24
TER62602 7.2 350 26
TER62802 8.4 400 28
TER63002 9.7 400 30
TER63202 11 400 32
TER63603 14 - 36
TER64003 17 - 40
TER64403 21 - 44
TER64803 25 - 48
TER65203 29 - 52
TER65603 33.5 - 56
TER66003 39 - 60

Working load limits (WLL)

Rope
WLL tons
Ø

 Straight lift

Information icon

U-lift

mm
Straight lift
Choke hitch
Basket hitch
6
0,35
0,28
0,7
8
0,7
0,55
1,4
10
1,05
0,85
2,1
12
1,55
1,2
3,1
14
2,12
1,7
4,2
16
2,7
2,2
5,4
18
3,4
2,7
6,8
20
4,35
3,4
8,7
22
5,2
4,1
10,4
24
6,3
5
12,6
26
7,2
5,8
14,4
28
8,4
6,7
16,8
32
11
8,8
22
36
14
11,2
28
40
17
13,6
34
44
21
16,8
42
48
25
20
50
52
29
23,2
58
56
33,5
26,8
67
60
39
31,2
78
