• endless steel wire rope sling is equipped with pressing buckle
  • wire rope strength 1770 N / mm2
  • also available with spliced connections, larger workloads and special ends, ask more about our sales

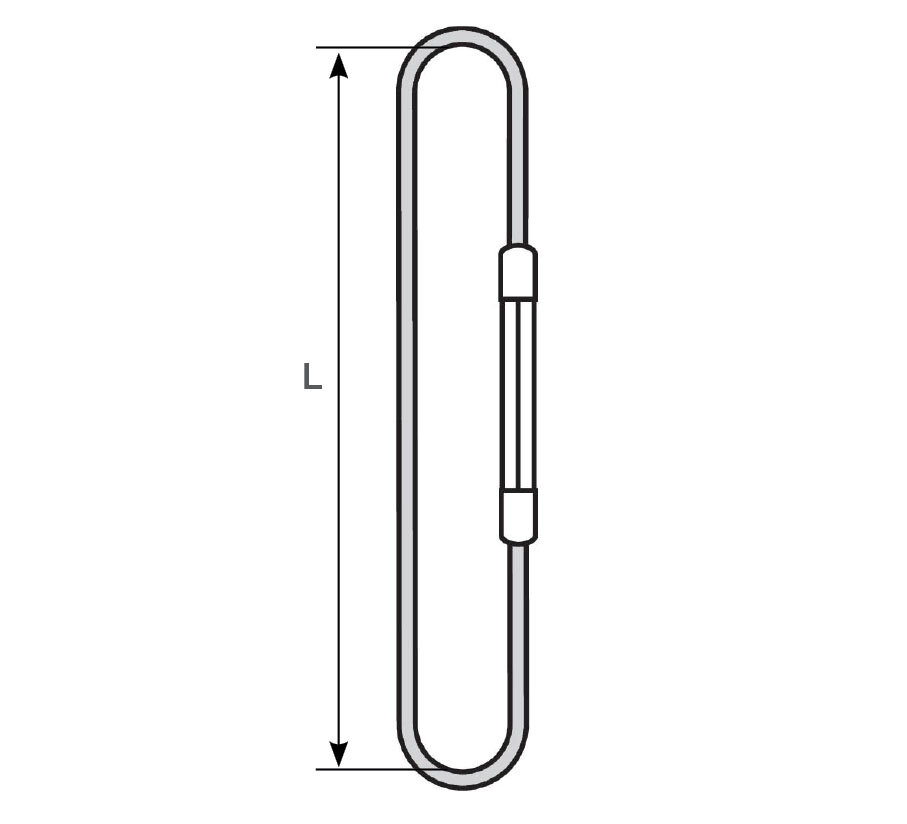

Note! The last two digits of the product code indicate the length (L), so tell the length of the sling when ordering.



  • Features: Steel core
  • Rope construction: 6X36-IWRC
  • Marking: CE-marked
  • Finish: hot dip galvanized
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button
Part Code WLL straight lift
ton
Ø wire rope
mm
TER100601 0.7 6
TER100801 1.4 8
TER101001 2.1 10
TER101201 3.1 12
TER101401 4.24 14
TER101601 5.4 16
TER101801 6.8 18
TER102002 8.7 20
TER102202 10.4 22
TER102402 12.6 24
TER102602 14.4 26
TER102802 16.8 28
TER103002 19.4 30
TER103202 22 32
TER103603 28 36
TER104003 34 40
TER104403 42 44
TER104803 50 48
TER105203 58 52
TER105603 67 56
TER106003 78 60

Working load limits (WLL)

Rope WLL tons
Ø  Straight lift  Information icon U-lift
mm Straight lift Choke hitch Basket hitch
6 0,7 0,56 1,4
8 1,4 1,12 2,8
10 2,1 1,68 4,2
12 3,1 2,48 6,2
14 4,24 3,392 8,48
16 5,4 4,32 10,8
18 6,8 5,44 13,6
20 8,7 6,96 17,4
22 10,4 8,32 20,8
24 12,6 10,08 25,2
26 14,4 11,52 28,8
28 16,8 13,44 33,6
30 19,4 15,52 38,8
32 22 17,6 44
36 28 22,4 56
40 34 27,2 68
44 42 33,6 84
48 50 40 100
52 58 46,4 116
56 67 53,6 134
60 78 62,4 156
