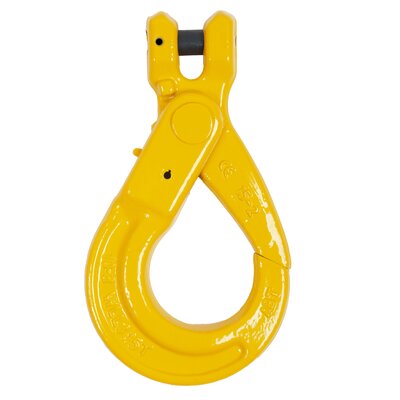

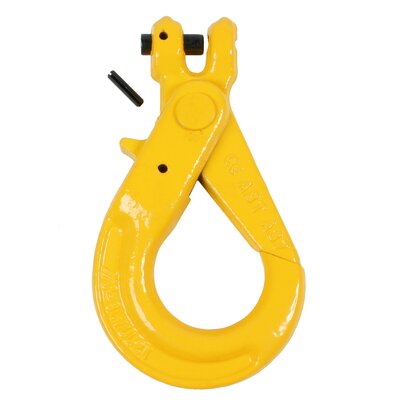

Haklift

The chain is attached to the hook with clevis without a connecting link. The hook locks automatically when lifting starts.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

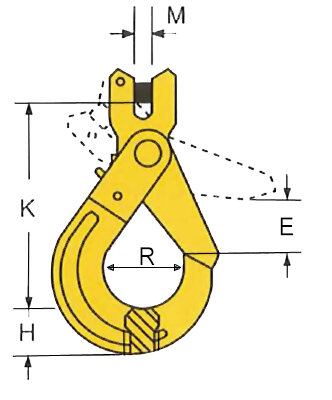

Part Code WLL
ton
For chain dia.
mm
K
mm
H
mm
E
mm
M
mm
R
mm
Weight
kg
VAKH6 1.12 6 95 19 29 8 34 0.5
VAKH78 2 7/8 121 24 34 9 46 0.8
VAKH10 3.15 10 146 30 44 12 56 1.5
VAKH13 5.3 13 182 40 52 15 69 2.8
VAKH16 8 16 218 50 60 18 86 5.6
VAKH20 12.5 20 240 55 83 25 100 7.5
VAKH22 15 22 276 67 88 25 98 11.5
