KWB

General: For 3 and 4-leg slings with shortening element.

  • Temperature range: -40ºC to 200ºC.
  • Safety factor: 4:1.
  • Grade: 12
Product Image 1
Product Supplier Logo
Product Image 2
Select a row from the table below, then click the add to quote button

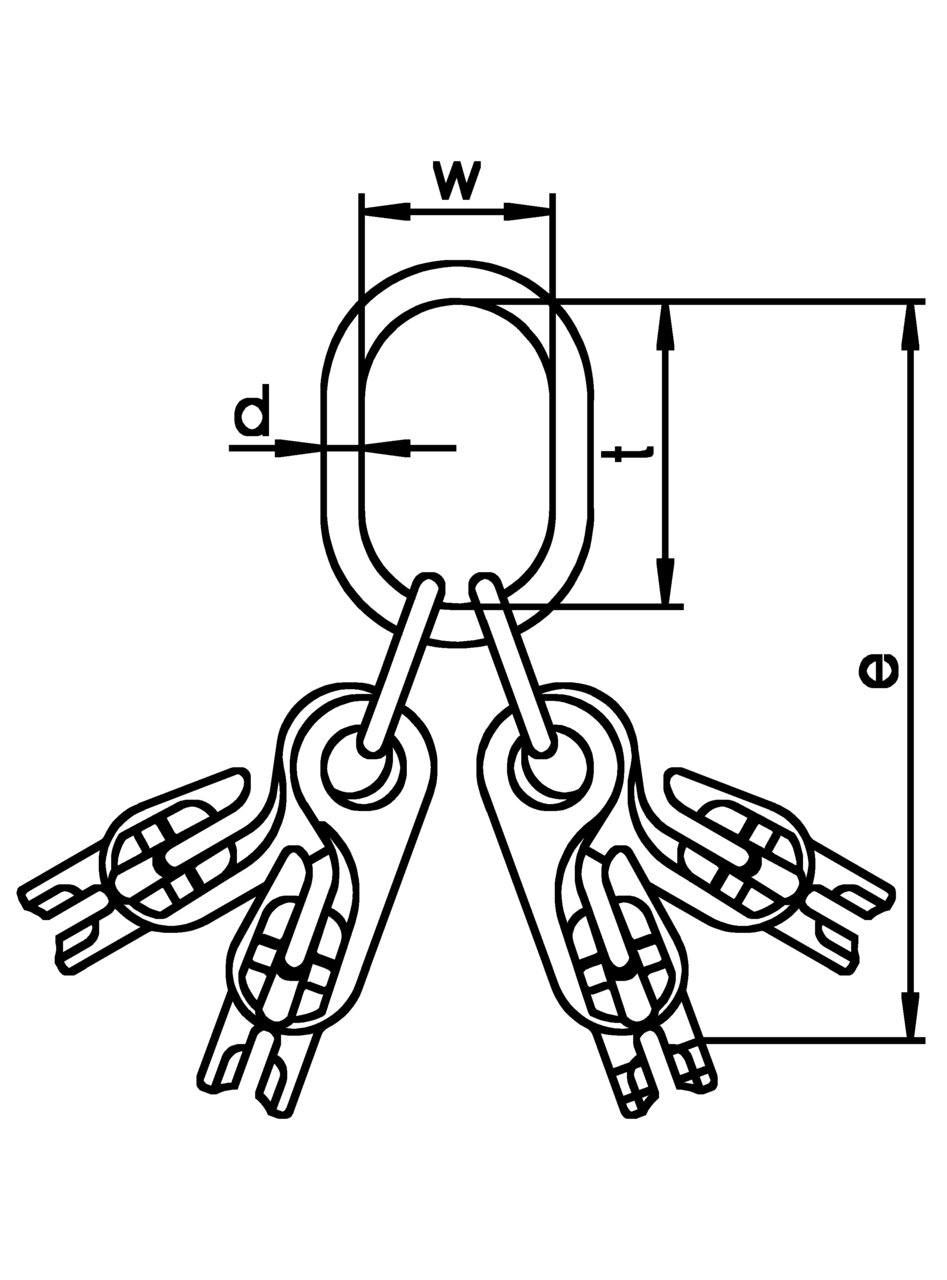

Part Code Code WLL
ton
chain Ø
mm
WLL 45-60°
ton
Chain Ø
inch
can be usedto singlehook acc.to DIN15401no. d
mm
t
mm
w
mm
e
mm
Weight
kg
NRLI124H07 GTVK/SUN 4-7 5 7 3,55 9/32 10 27 190 110 368 6,45
NRLI124H08 GTVK/SUN 4-8 6,3 8 4,5 5/16 10 27 190 110 368 6,45
NRLI124H10 GTVK/SUN 4-10 10,6 10 7,5 3/8 12 30 190 110 433 11,7
NRLI124H13 GTVK/SUN 4-13 17 13 11,8 1/2 12 38 275 150 616 23,84
NRLI124H16 GTVK/SUN 4-16 25,6 16 18,3 5/8 12 38 275 150 658 36,16

WLL ton is for 0-45°
