Haklift

Masterlink for 2-4-leg chain sling assemblies. chain is attached with grade 100 connecting link.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

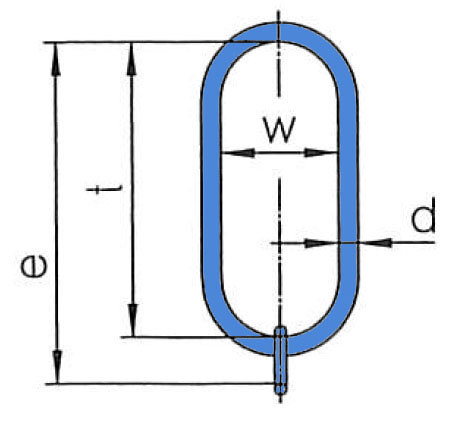

Part Code WLL
ton
For chain mm, 2-leg For chain mm, 3-4-leg d
mm
t
mm
w
mm
e
mm
Weight
kg
NORYL10108 5.6 10 8 27 340 180 410 5.1
NORYL101013 9.5 10 10 33 340 180 425 8
NORYL101316 14 13 13 40 340 180 455 12.3
NORYL101620 21.2 20 16 40 340 180 480 13.8
