Master link assemblies

Home / Products / WEBBINGS / CHAINS / STEEL WIRE ROPE SLINGS / 2. LIFTING CHAIN COMPONENTS / STEEL WIRE ROPE SLINGS / Grade 100 / Master link assemblies with grab hooks for 3- and 4-leg chain slings

Chains are attached directly to the grab hooks which are fixed to the master link.

Material: Steel
Marking: CE-marked
Temperature range: -29 - (+)205°C
Finish: Painted, blue
Warning: Not to be heat-treated

Safety factor: 4:1
Grade: 10

Select a row from the table below, then click the add to quote button

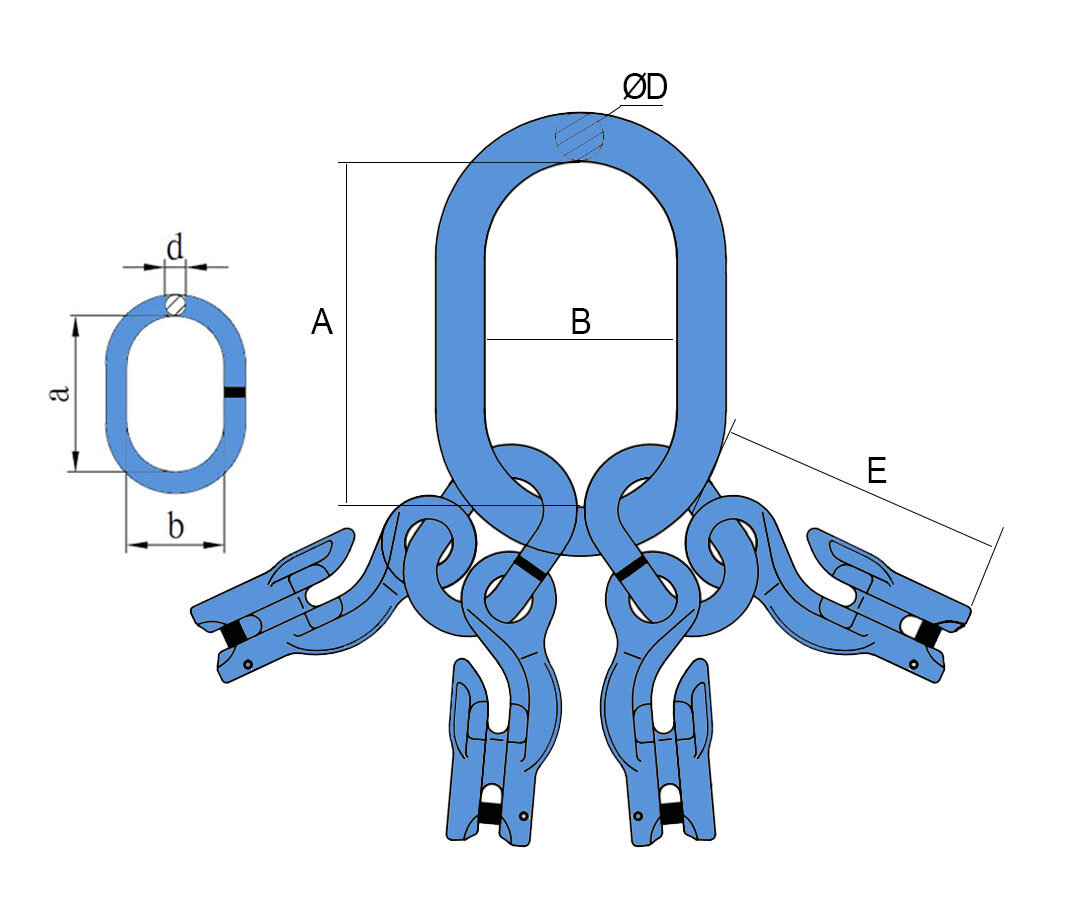

Part Code	WLL ton	For chain Ø mm	D mm	B mm	A mm	E mm	a mm	b mm	d mm	Weight kg
NRLIA46L	3	6	14	75	135	112	54	25	13	2,5
NRLIA48L	5,3	8	17	90	160	145	70	34	16,5	5,1
NRLIA410L	8	10	22	100	180	184	85	40	19	9
NRLIA413L	14	13	25	110	200	178	115	50	23	16
