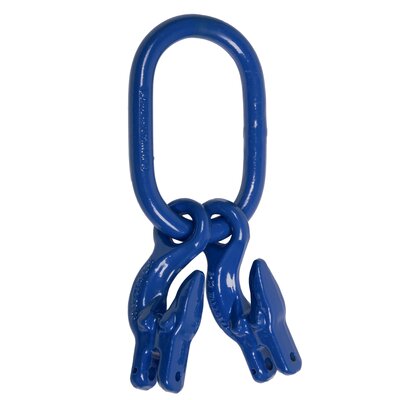

Haklift

Chains are attached directly to the grab hooks which are fixed to the master link.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

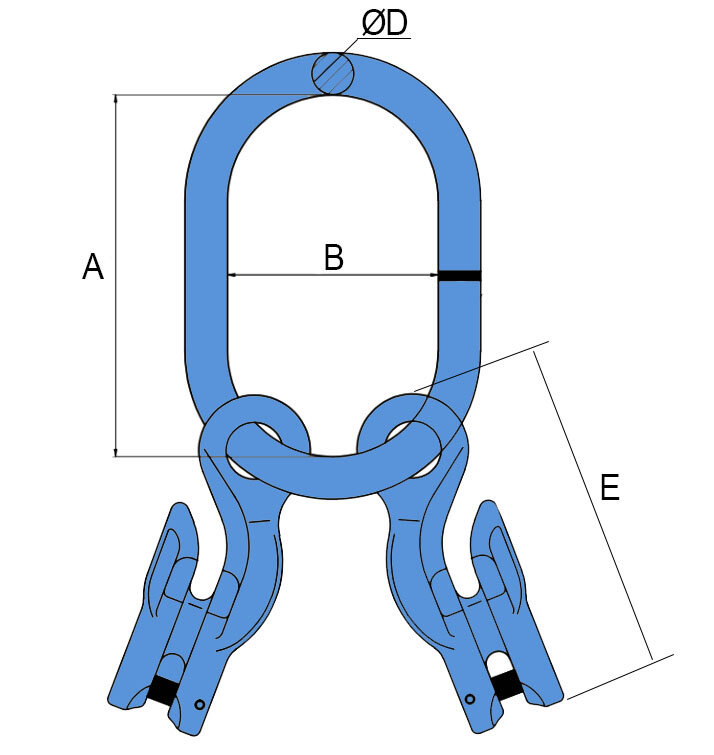

Part Code WLL
ton
For Chain Ø
mm
D
mm
B
mm
A
mm
E
mm
Weight
kg
NRLIA6L 2 6 14 70 120 112 1
NRLIA78L 3.55 8 17 80 140 145 2.1
NRLIA10L 5.6 10 22 95 160 184 4.2
NRLIA13L 9.5 13 25 110 190 178 7
NRLIA16L 14 16 32 130 230 216 13.5
