Haklift

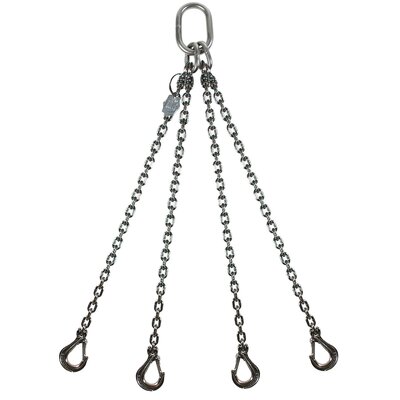

4-legs Stainless steel chain sling assembly equipped with safety hooks. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.

Note! The last two numbers of the product code refer to the length (L-length): 01 = 1,0 m.
The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hooks.



  • Material: AISI 316
  • Marking: CE-marked
  • Temperature range: -40 - (+)400°C
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
Select a row from the table below, then click the add to quote button
Part Code For Chain Ø
mm
WLL 45- 60°
ton
WLL 0-45°
ton
NKSH06401 6 1 1.5
NKSH08401 8 1.8 2.5
NKSH10401 10 2.4 3.3
NKSH13401 13 4 5.7
