Haklift

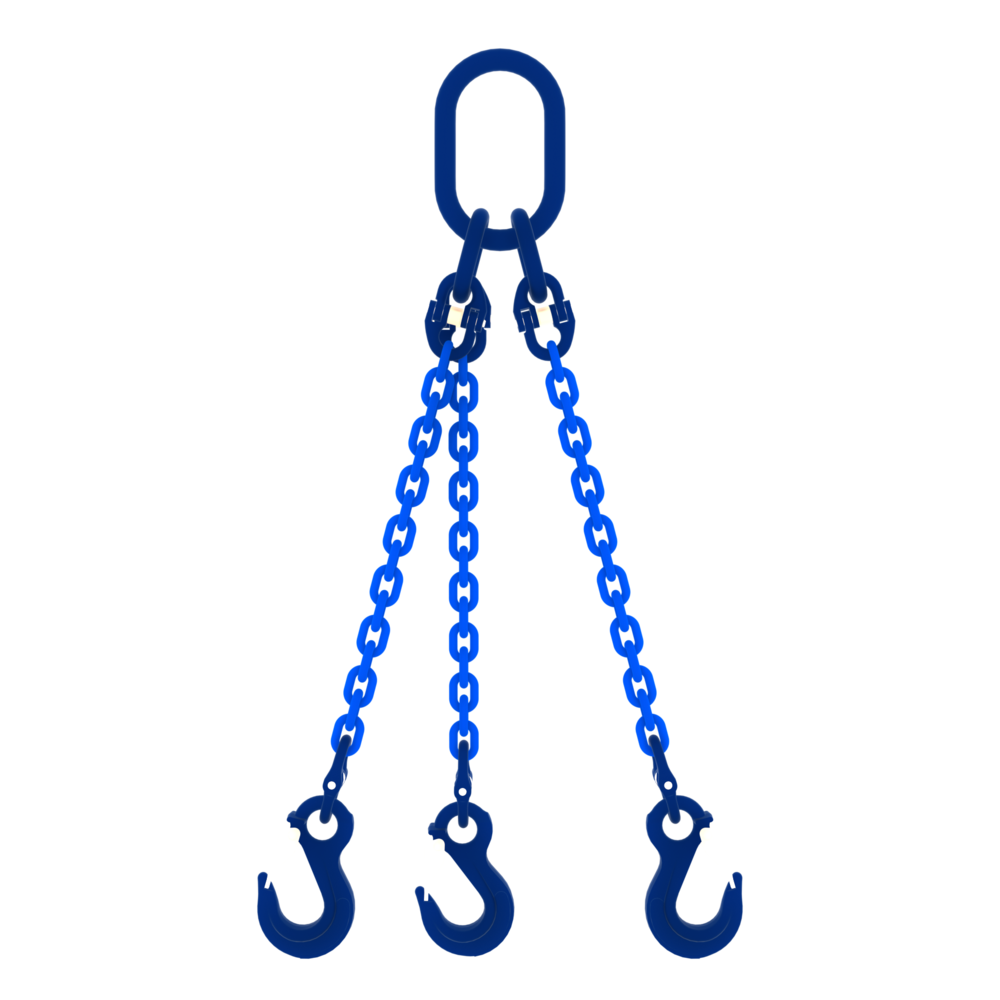

3-legs chain sling assembly equipped with safety hooks. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.

Note! The last two numbers of the product code refer to the length (L-length): 01 = 1,0 m.
The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hooks.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
kwb_klx-375_225mm
Select a row from the table below, then click the add to quote button
Part Code Chain size
mm
WLL 45- 60°
ton
WLL 0-45°
ton
NKSE06301 6 2.1 2.94
NKSE08301 8 3.75 5.25
NKSE10301 10 5.7 8
NKSE13301 13 10 14
NKSE16301 16 15 21
NKSE20301 20 24 33.6
NKSE22301 22 28.5 39.9
