Haklift
  • Not for lifting

Commercial quality turnbuckles with stubs for all kind of use



  • Material: Steel
  • Finish: Electro galvanized
  • Note: Not for lifting
    Select a row from the table below, then click the add to quote button

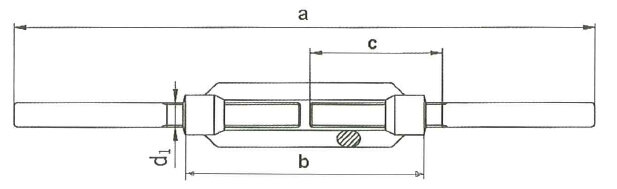

    Part Code Thread a
    mm
    b
    mm
    c
    mm
    Weight
    kg
    VRRAT06 M6 240 – 320 110 65 0,093
    VRRAT08 M8 240 – 315 110 65 0,14
    VRRAT10 M10 300 – 385 125 75 0,28
    VRRAT12 M12 300 – 380 125 75 0,4
    VRRAT16 M16 400 – 510 170 100 0,89
    VRRAT20 M20 440 – 570 200 120 1,6
    VRRAT24 M24 520 – 690 255 150 2,82
    VRRAT30 M30 520 – 680 255 160 4,23
    VRRAT36 M36 600 – 780 295 180 7,07
    VRRAT42 M42 700 – 900 330 200 11,6
    VRRAT48 M48 760 – 955 355 195 19
