Haklift
  • Not for lifting

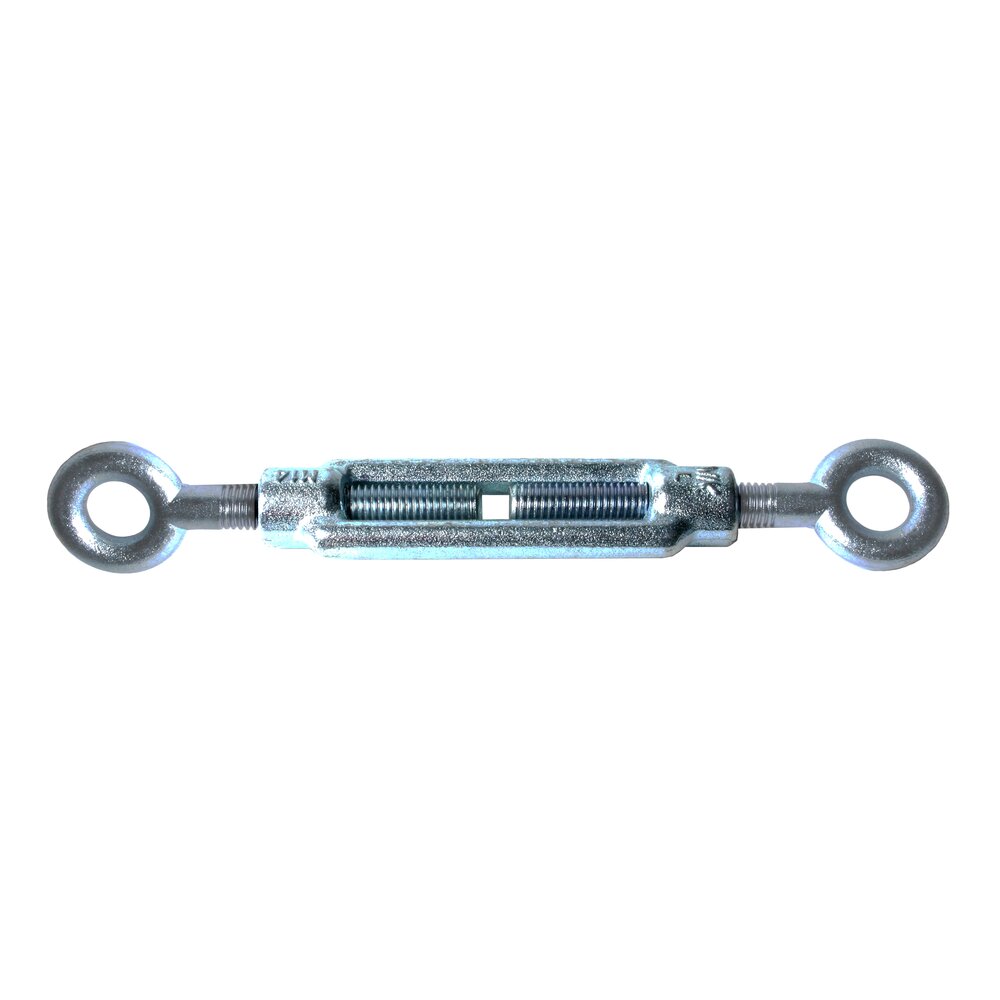

Commercial quality turnbuckles for all kind of use



  • Material: Steel
  • Finish: Electro galvanized
  • Note: Not for lifting
Select a row from the table below, then click the add to quote button

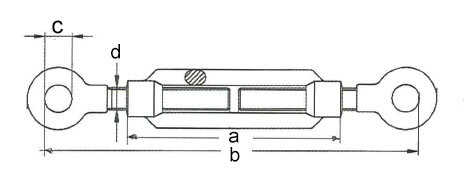

Part Code Packing Qty. a
mm
b
mm
c
mm
d
mm
Weight
kg
VRSS06 10 110 156 – 236 8 6 0.095
VRSS08 10 110 160 – 240 10 8 0.165
VRSS10 10 125 170 – 263 13 10 0.29
VRSS12 10 125 201 – 285 17 12 0.43
VRSS14 10 140 222 – 322 17 14 0.62
VRSS16 10 170 259 – 377 19 16 0.92
VRSS20 5 200 307 – 445 24 20 1.63
VRSS22 2 220 342 – 496 27 22 2.2
VRSS24 2 255 377 – 561 27 24 3
VRSS30 1 255 391 – 570 31 30 4.6
