• Ordinary right hand lay
  • Galvanized
  • Bright
  • Heavy Galvanized
  • Not to be used with swivel

ISO 4309 Rope Category No: All Diameters RCN.09

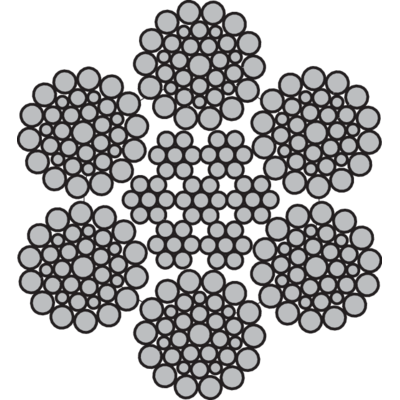

  • Rope construction: 6x36WS-IWRC.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.59
  • Slings Information icon
  • Winch rope Information icon
  • Stay rope Information icon
  • Overhead cranes For the use with overhead crane
  • Tower crane Information icon
  • Container crane For use with container crane
  • Mobile port crane Information icon
  • Offshore crane Information icon
  • Loading crane Information icon
  • Crawler crane Information icon
  • Piling crane Information icon
  • Ladle crane Information icon
  • STS crane Information icon
  • Straddle carrier Information icon
  • RTG Information icon
6x36-IWRC - 265tr
Select a row from the table below, then click the add to quote button
Part Code Rope diameter Steel Area
mm²
Min. breaking force
kN
1770 N/mm²
Weight
TEK26508 8 29,4 40,3 26,2
TEK26510 10 46 63 40,9
TEK26512 12 66,2 90,7 58,9
TEK26513 13 77,7 106 69,1
TEK26514 14 90,2 124 80,2
TEK26516 16 118 161 105
TEK26518 18 149 204 133
TEK26520 20 184 252 164
TEK26522 22 223 305 198
TEK26526 26 311 426 276
TEK26528 28 361 494 321
TEK26530 30 414 567 368
TEK26532 32 471 645 419
