Haklift
  • Not for lifting

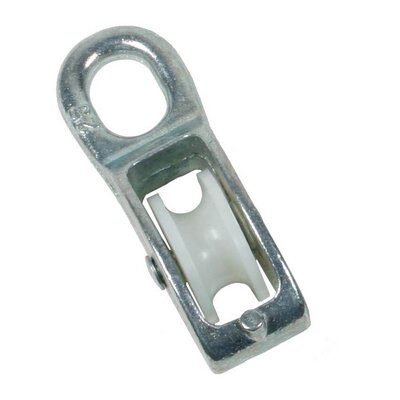

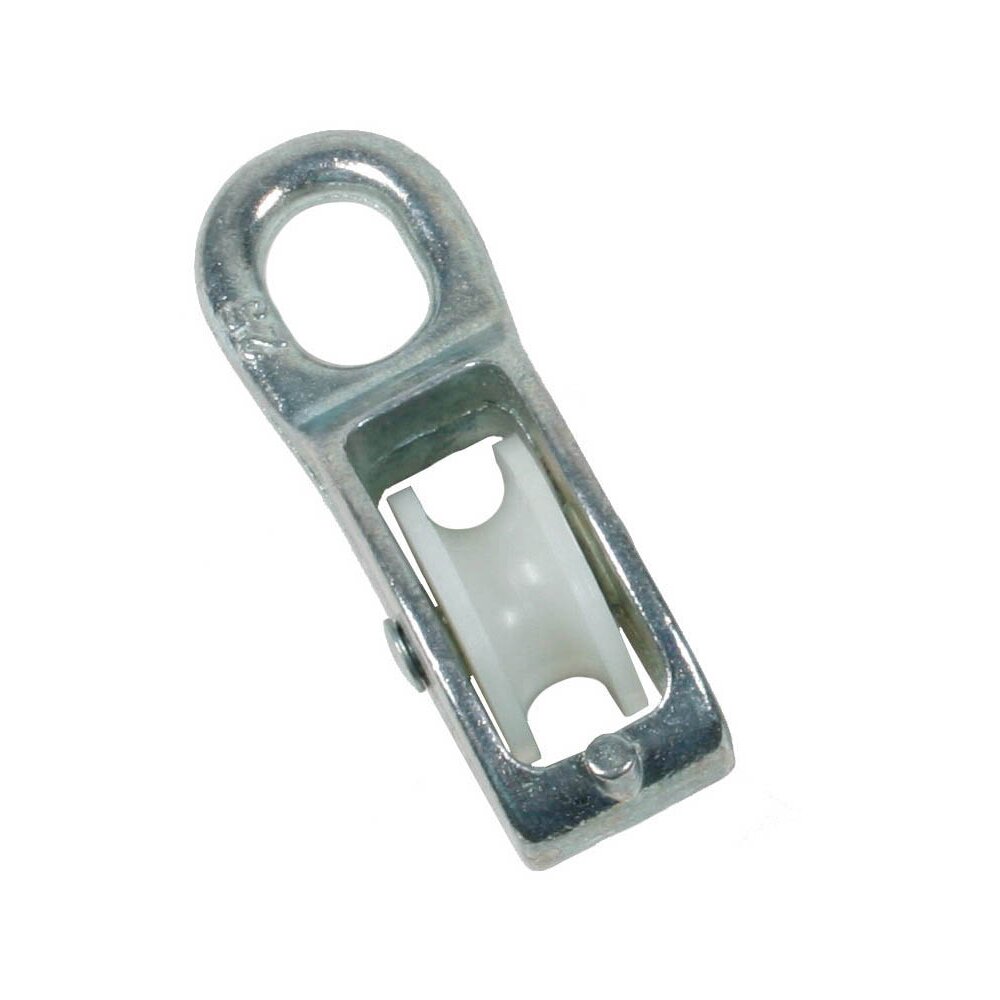

Pulley body is electro galvanized steel and wheel is nylon. Suitable for synthetic fibre ropes.



  • Material: Body: casted zinc / electro galvanized. Wheel: Nylon
  • Finish: Electro galvanized
  • Warning: Not for lifting
Select a row from the table below, then click the add to quote button

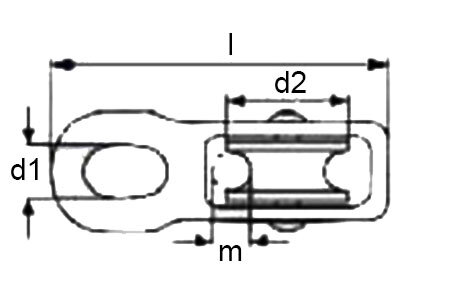

Part Code Minimum breaking strength
ton
For wire Ø
mm
d1
mm
d2
mm
l
mm
Weight
kg/100pc
PYL05 0.55 5 10 15 50 2.4
PYL06 0.6 6 11 20 60 4.1
PYL08 0.9 8 13 30 80 8.3
PYL09 1.1 9 14 40 93 12.7
PYL12 1.2 12 16 50 113 19.7
PYL16 1.3 16 20 65 135 38.5
