A combination of wire rope clamp and thimble. Two part thimble and recessed bolts, for easy mounting.

  • Material: Galvanized
    Select a row from the table below, then click the add to quote button

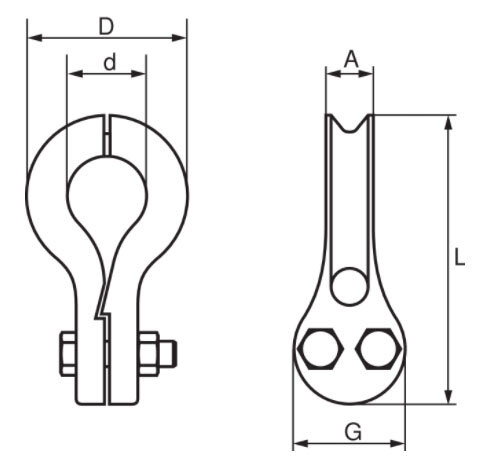

    Part Code Rope diameter
    mm
    A
    mm
    D
    mm
    d
    mm
    G
    mm
    L
    mm
    Weight
    kg
    LUKO6 5-6 9 39 22 25 69 0,1
    LUKO9 7-9 15 56 30 38 106 0,5
    LUKO12 10-12 20 82 41 47 152 1
    LUKO16 13-16 24 99 57 59 193 2
    LUKO20 17-20 36 130 68 75 242 3,8
