• for installation, repairs, packaging etc.
  • pallet can be set on top of the lifting
  • table by means of a hand pallet truck
  • operating voltage 3-phase /
  • 380-400 V / 50 Hz
  • 24 V control device (end of a cable)
  • with lifting and lowering functions as
  • well as emergency stop
  • equipped with overload protection
  • in case of hydraulic hose leakage a safety valve will stop the table from lowering
  • delivered completely assembled
  • without electric plug
  • IP54



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
Select a row from the table below, then click the add to quote button

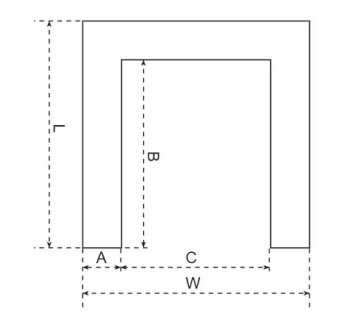

Part Code Lifting times Min height
mm
Max height
mm
A
mm
B
mm
C
mm
L
mm
W
mm
Weight
kg
NOSP1000HU 25-35 85 860 280 1 080 580 1 450 1 140 280
