Haklift

Easy-to-use, lightweight, durable and compact size electric pallet truck. Equipped with electric lifting and manual lowering functions. Due to the stepless driving motor and small turning radius, the pallet truck is easy to use in narrow spaces and corridors. 20 Ah lithium battery ensures 3-6 hours of continuous operating time depending on the load. Separate charger enables charging of an additional battery during the use of the electric pallet truck, which makes it possible to use the device continuously the necessary time. Charging time of the battery is only 3 hours and the interchange can be executed in 10 seconds. Carbon brushless motor ensures carefree use and fast maintenance.

Product code of extra battery: HAVA1200ELEAKKU

Content of the delivery:
- Electric pallet truck
- 1 pcs battery 48V / 20 Ah
- 1 pcs charger








  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -10 - (+)40 °C
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Lifting height max
mm
Width of forks
mm
Lenght of forks
mm
Minimum height of fork
mm
Motor
kW
Lifting motor Output (kW) Type of battery Weight
kg
HAVA1200ELE 1.2 110 550 1,150 80 0,6 0,8 Litium 48V / 20 Ah 134
HAVA1200ELEAKKU Litium 48V / 20 Ah

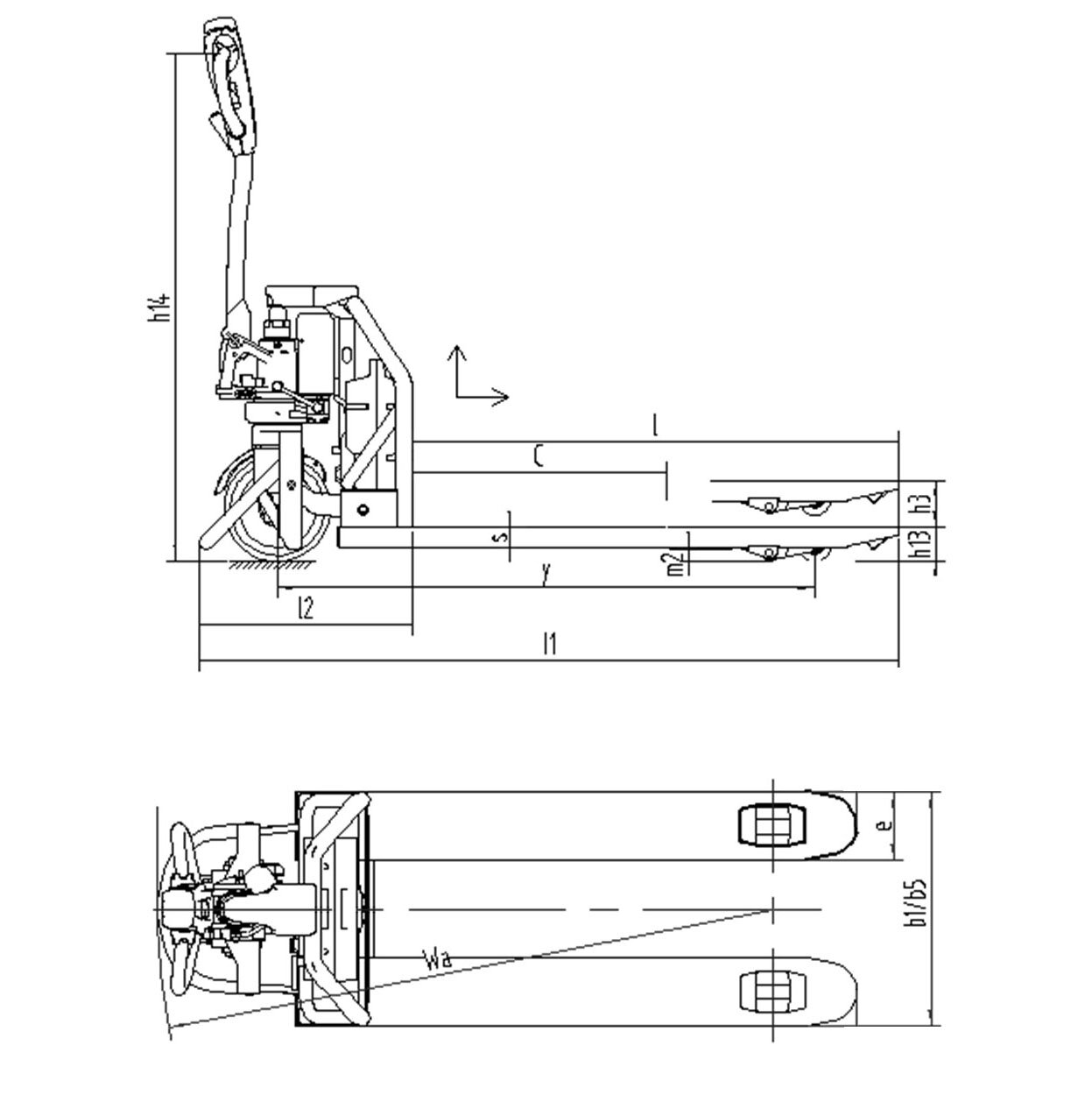

DIMENSIONS

Load center distance C (mm) 600
Fork height h13(mm) 80
Axle distance Y(mm) 1269
Wheels   PU
Wheel diameter front Ø (mm) 250
Wheel diameter rear Ø (mm) 80
Pushing handle min. and max. heights h14 (mm) 635/1200
Overall length l1 (mm) 1651
Frame length before forks l2 (mm) 501
Overall width b1 (mm) 550
Fork dimensions s/e/l (mm) 45/160/1150
Fork width b5 (mm) 550
Fork distance from the floor h13 (mm) 35
Turning radius mm 1452
Speed, laden / unladen Km/h 4 / 4.5
Max. slope angle laden / unladen % 3 / 8
Parking brake   Electronic
Noise level dB 70
