Electric Chain Hoist LIFTKET STAR with hook suspension 250 – 2.000 kg 230V

The LIFTKET product portfolio offers you standardized hoists that can be adjusted to your requirements in a modular way, as well as highly specialized solutions. Larger lifting and operating heights are just as viable as deviating voltages and special solutions of any kind.

Features:

• Power supply 220 - 240 V, 1 phase, 50 Hz
• From 250 kg to 2.000 kg

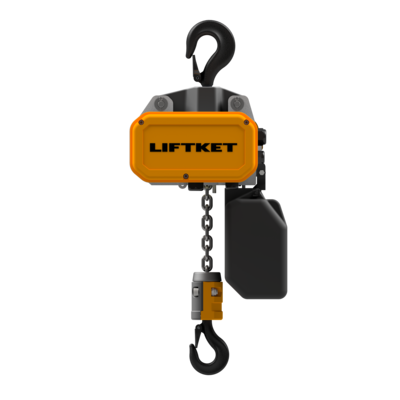

• supplied as standard with hook suspension
• Standard lifting height 6 m
• Flexible lifting height up to a maximum of 50 m, Ask more about our sales.
• FEM ratings from Fem 1Bm to 4m (ISO M3 to M7)
• Protection class IP55, insulation class F
• Galvanized load chain to DIN 818-7 quality class DAT
• One lifting speed
• With heavy-duty end position switch-off as standard (at 24VAC)
• Patented safety-brake-clutch system
• High duty rate
• Simply and cost effective maintenance and repair
• A unique ID makes it possible to trace exactly when a particular electric chain hoist was built by whom and with which materials – even after 10 years

Also available for the food industry:
The models of the STAR LIFTKET Foodline are equipped with a stainless steel load chain according to AISI 316 and a safety factor of min. 5:1. In addition, the NSF-H1 lubricant approved for the food industry is standard equipment in the gearbox. Optionally, the chain hoists can be ordered with stainless steel load hooks. Ask more about our sales.

• Marking: CE-marked

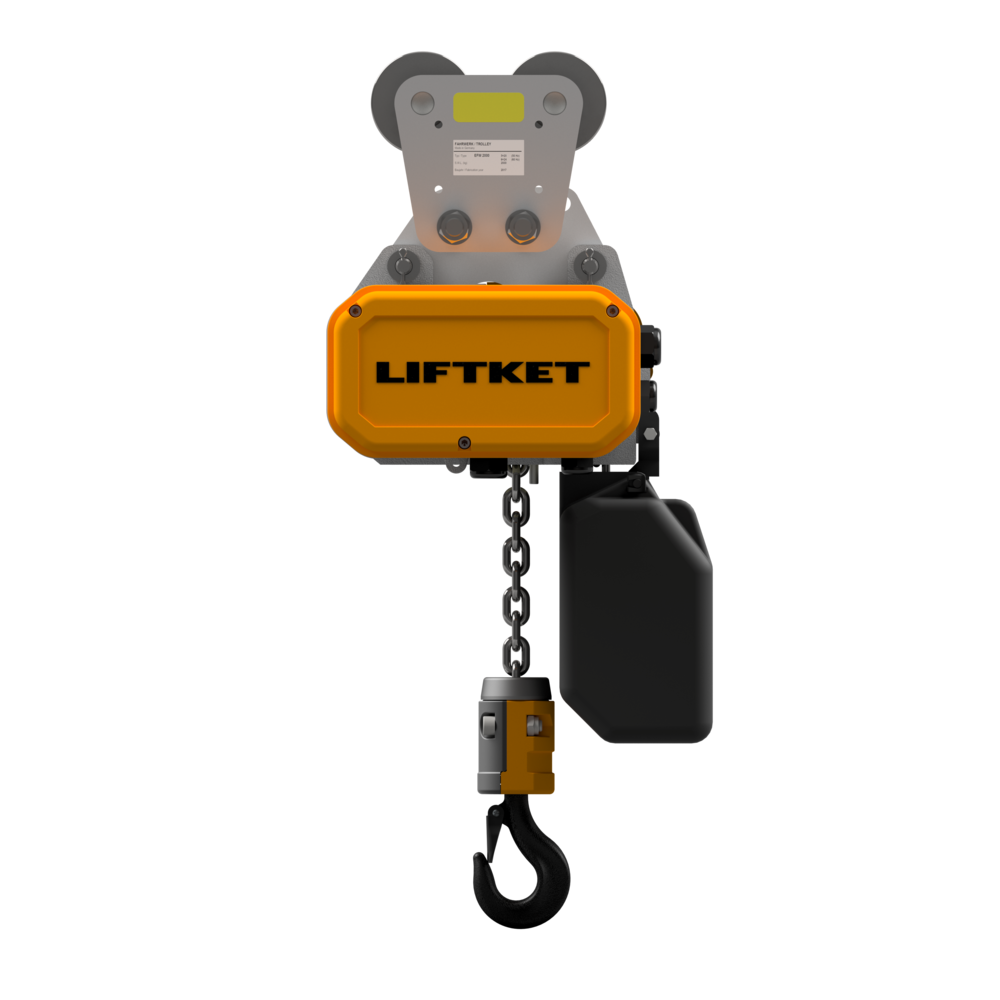

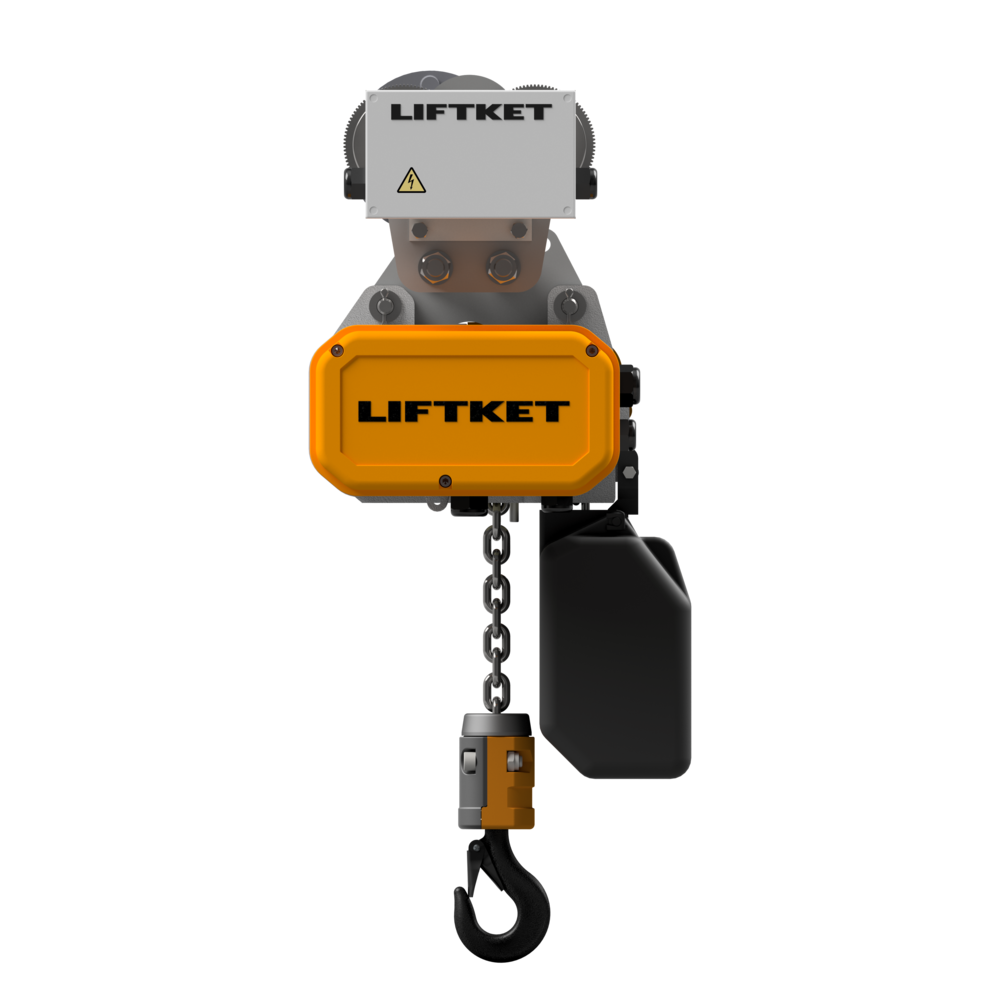

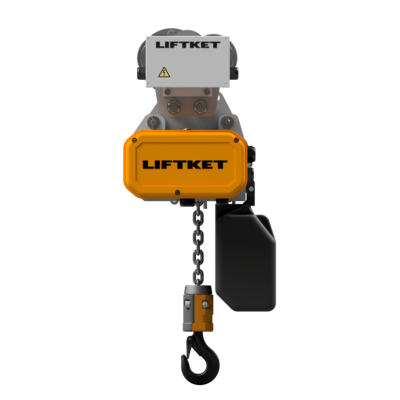

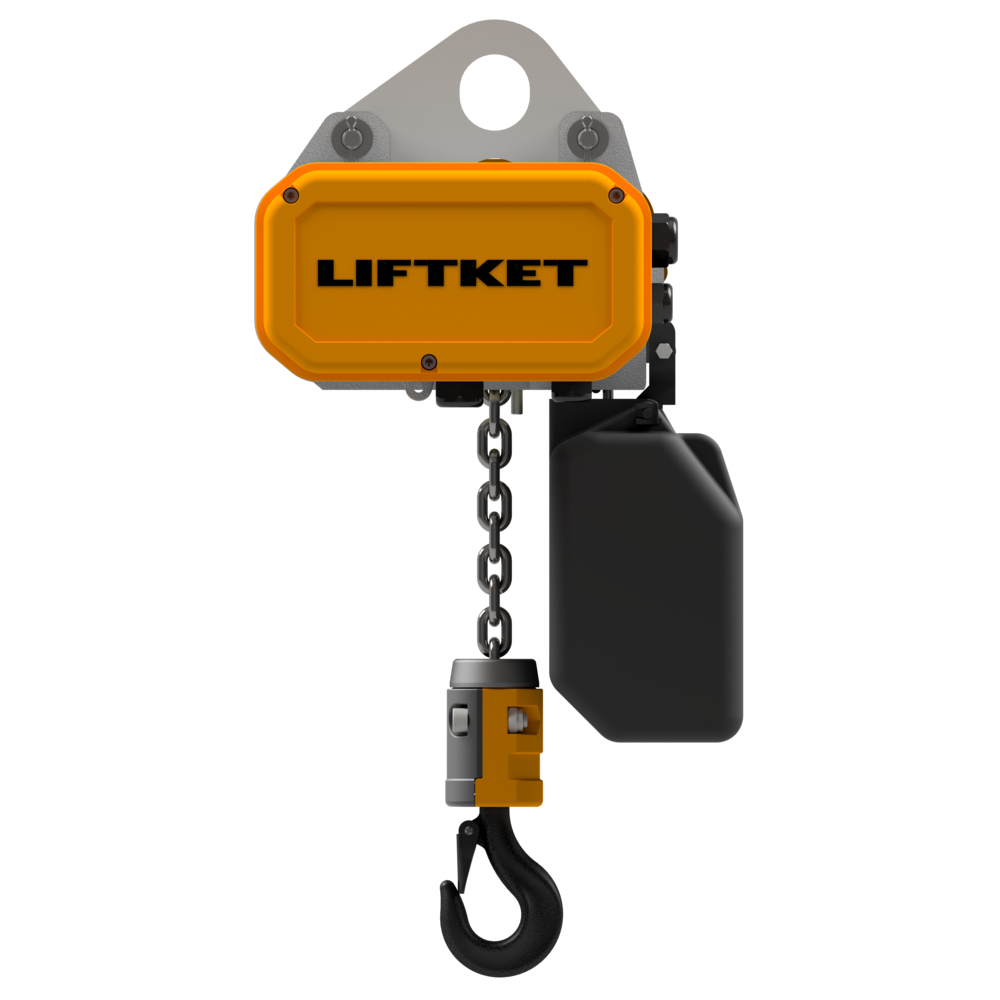

• Note: Also available with electric and manual trolleys with lifting eye suspension (connection between crane and trolley). Ask more about our sales.
