Electric Chain Hoist LIFTKET STAR with hook suspension 125 – 5.000 kg 400V

The LIFTKET product portfolio offers you standardized hoists that can be adjusted to your requirements in a modular way, as well as highly specialized solutions. Larger lifting and operating heights are just as viable as deviating voltages and special solutions of any kind.

Features:

• Power supply 400 V, 3 phase, 50 Hz
• From 125 kg to 5.000 kg

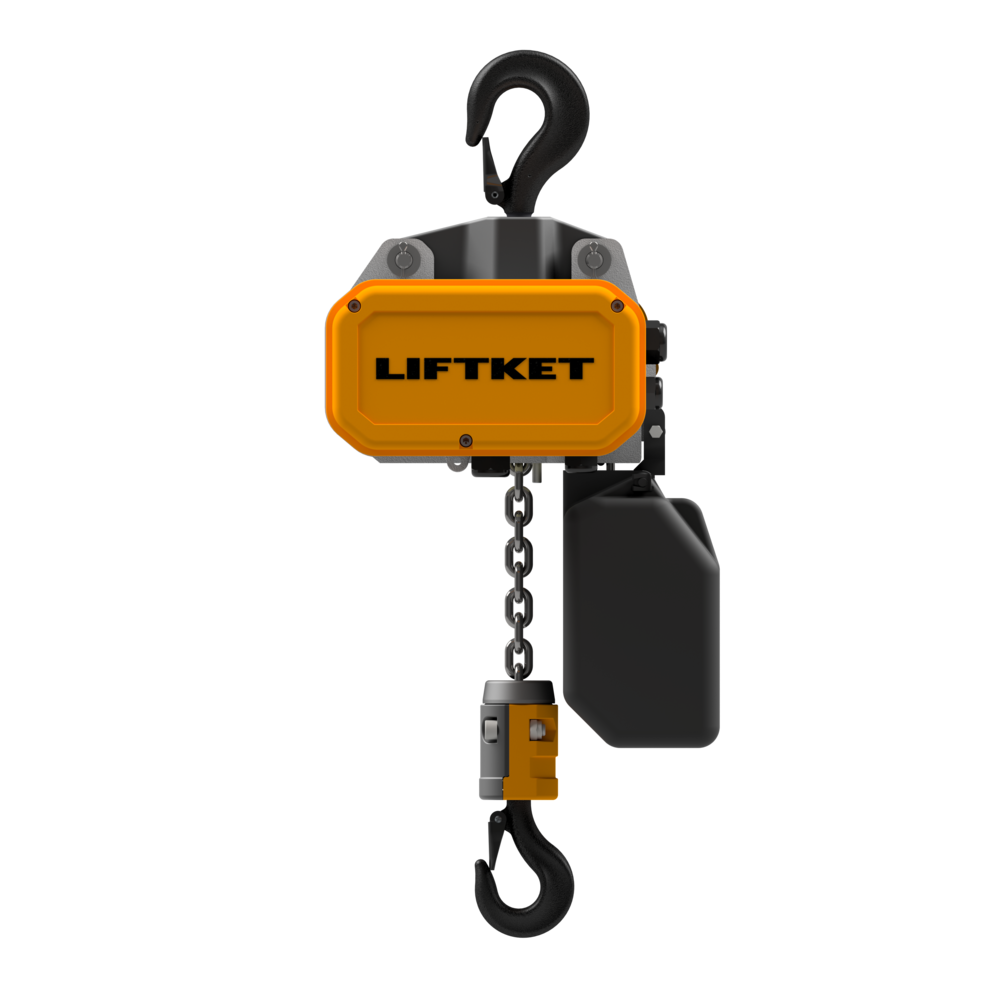

• supplied as standard with hook suspension
• Standard lifting height 6 m
• Flexible lifting height up to a maximum of 50 m, Ask more about our sales.
• FEM ratings from Fem 1Bm to 4m (ISO M3 to M7)
• Protection class IP55, insulation class F
• Galvanized load chain to DIN 818-7 quality class DAT
• A wide range of options can be selected as standard
• Two lifting speeds
• With heavy-duty end position switch-off as standard (at 24VAC)
• Patented safety-brake-clutch system
• Modular hoist design
• Simply and cost effective maintenance and repair
• A unique ID makes it possible to trace exactly when a particular electric chain hoist was built by whom and with which materials – even after 10 years

Also available for the food industry:

The models of the STAR LIFTKET Foodline are equipped with a stainless steel load chain according to AISI 316 and a safety factor of min. 5:1. In addition, the NSF-H1 lubricant approved

• Marking: CE-marked

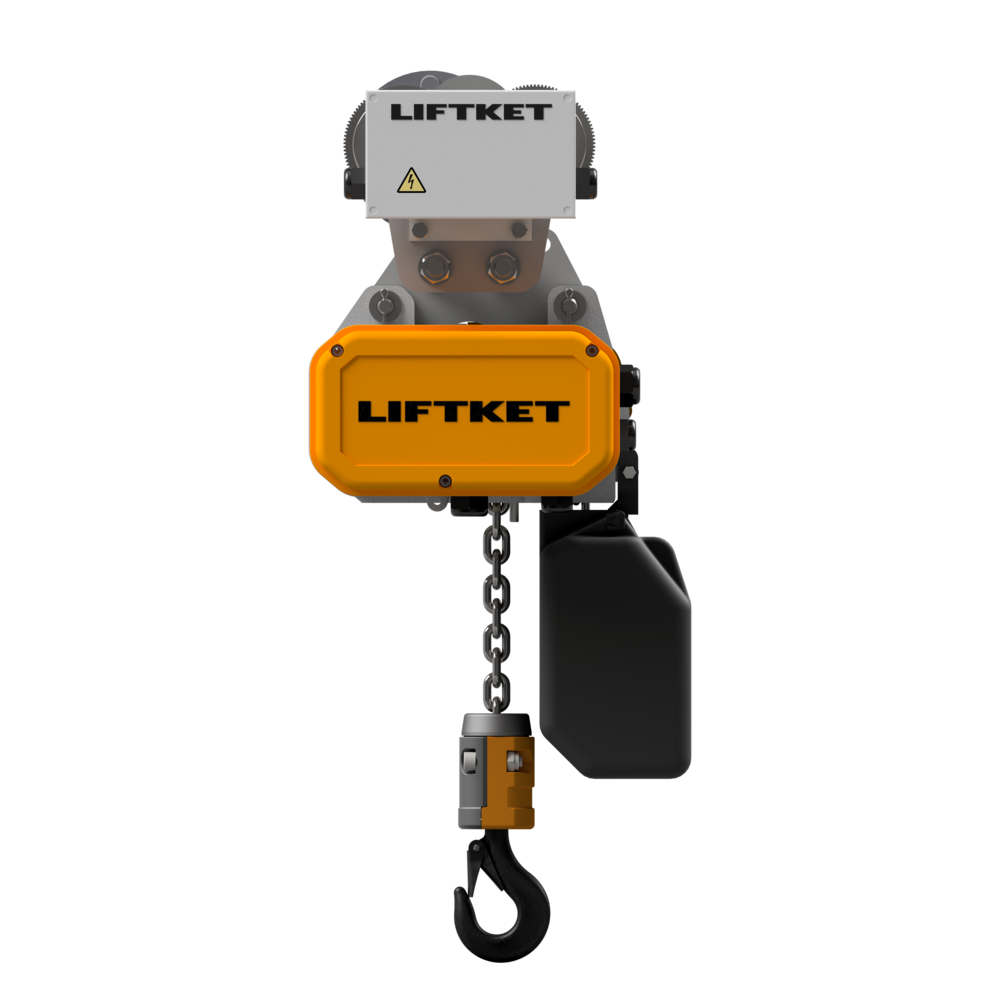

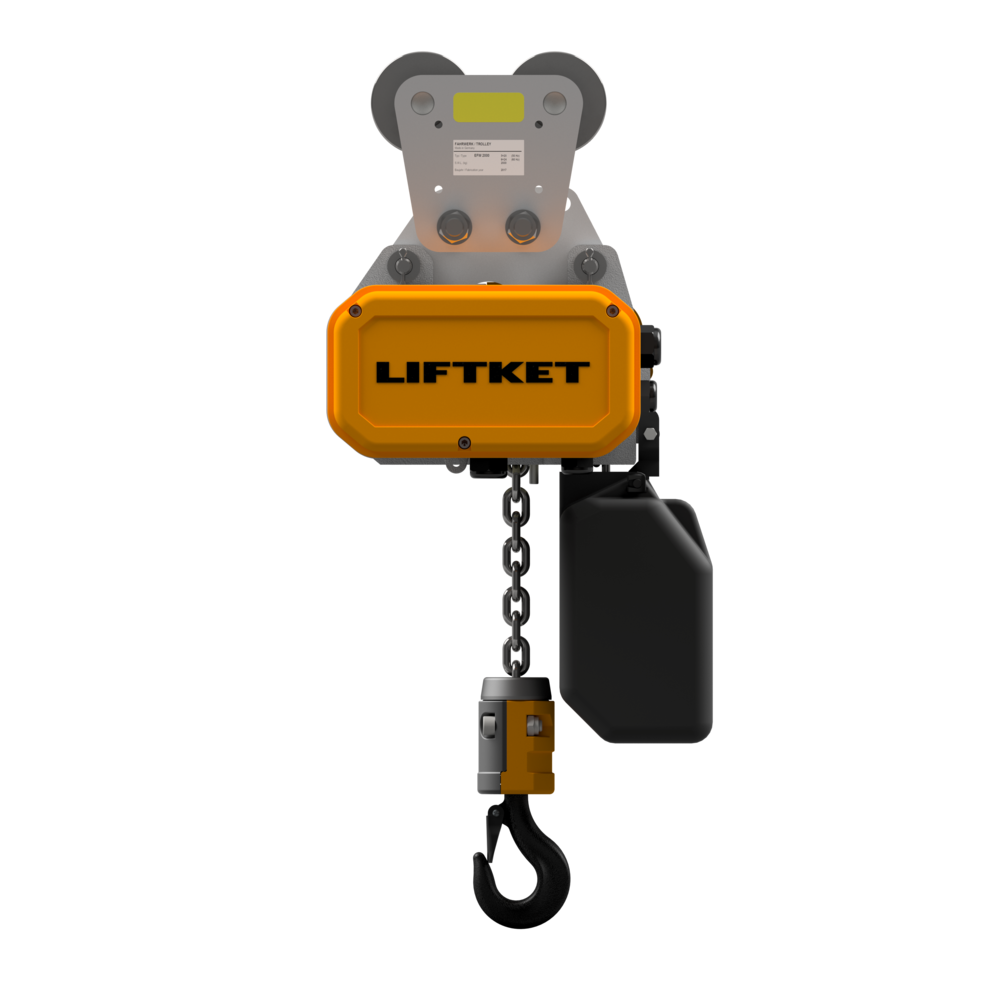

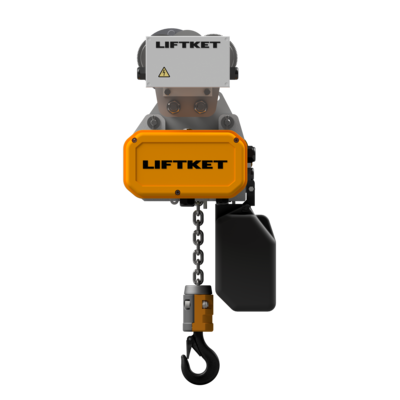

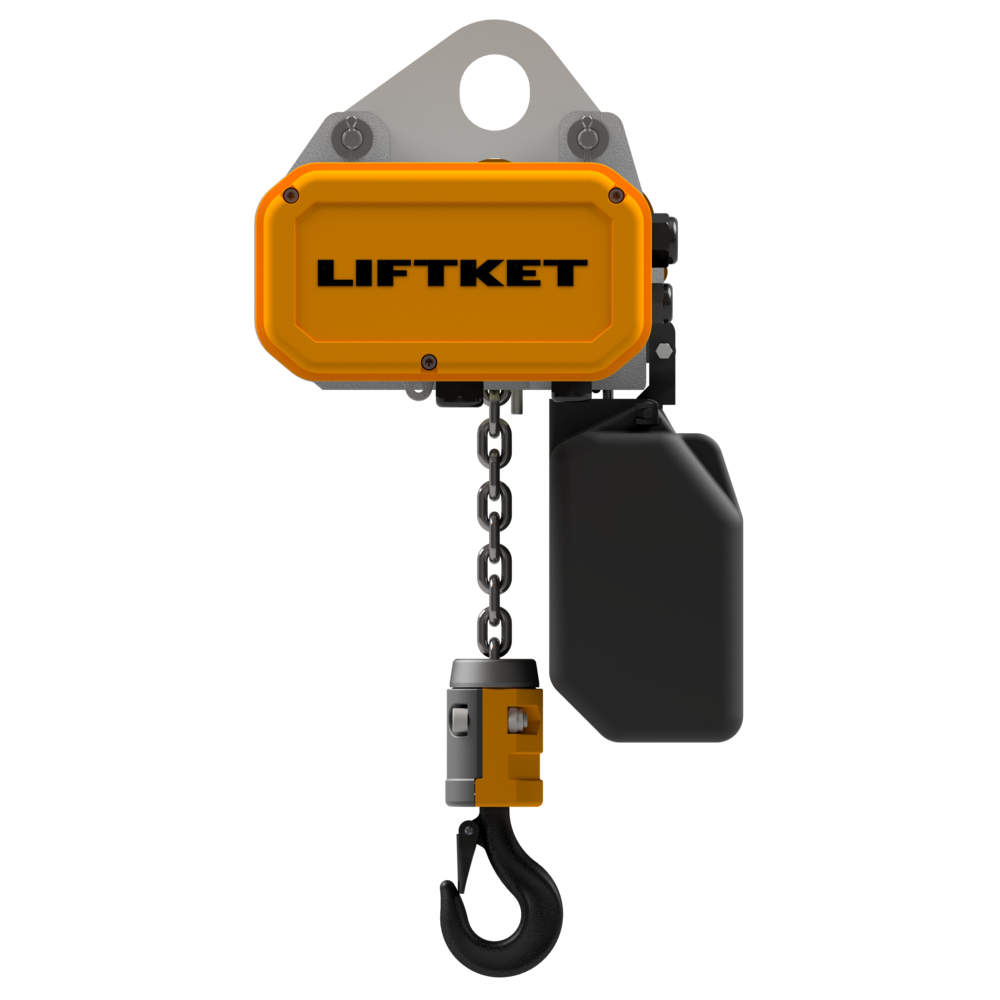

• Note: Also available with electric and manual trolleys with lifting eye suspension (connection between crane and trolley). Ask more about our sales.
