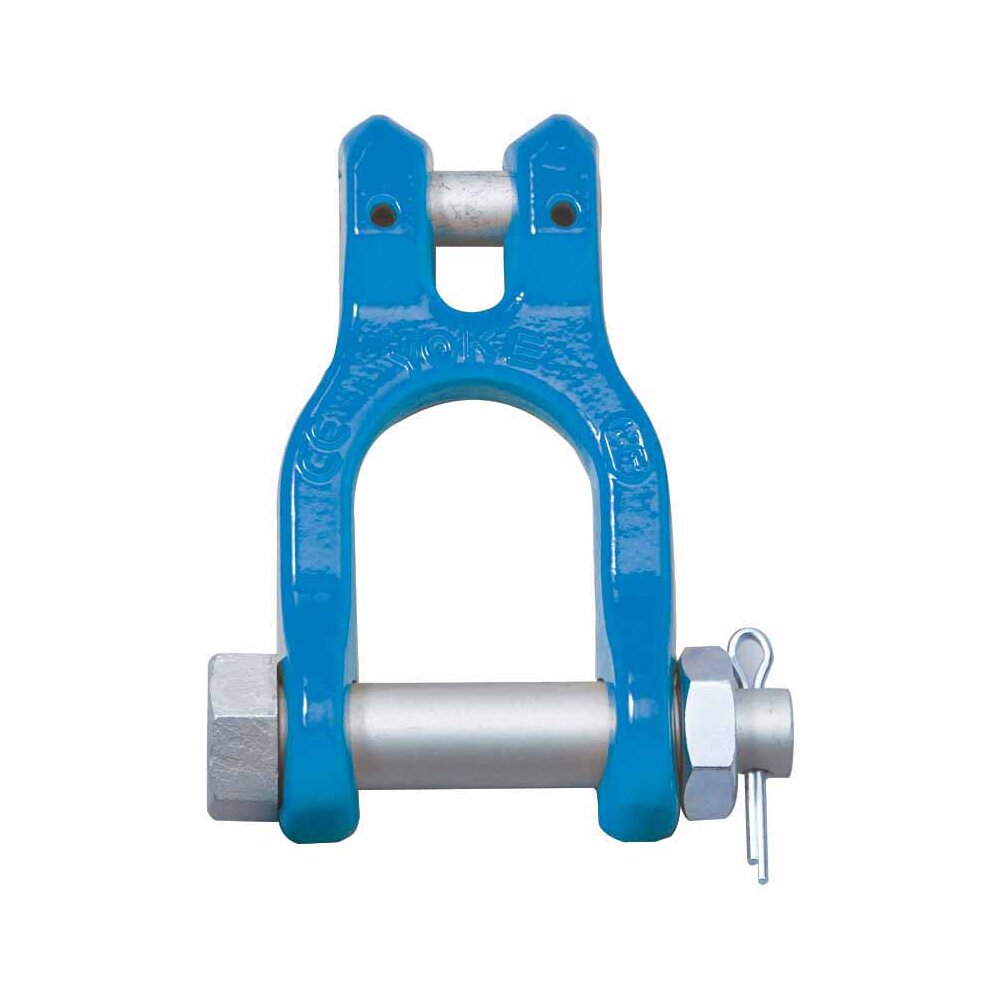

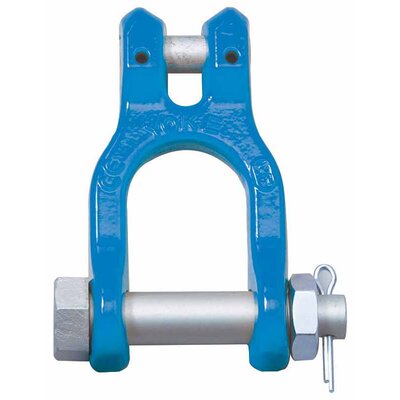

Clevis Shackle X-066, painted grade 100 shackle

  • At least 25% greater WLL than traditional Grade 8 products.
  • Proof Load tested at 2.5 times the WLL with certification for each batch manufactured. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
  • Tempering temperature minimum 400°C.
  • Magnaflux crack detection is performed 100% on each batch.
  • Manufactured in accordance with EN 1677- 1 and ASME B30.26.

When fitting G10 components are added to G8 chain, the sling is rated at G8 WLL.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: According to standard, Size, grade, manufacturer ID, traceability
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Blue painted
  • Standard: EN 1677-1
  • Safety factor: 4:1
  • Grade: 10
