• Not for lifting

General: Wire rope clips for steel wire rope for general applications.
Design: Forged u-bolts and casted bases.

  • Marking: According to standard
  • Finish: Electro-Galvanised
  • Standard: DIN 741
  • Note: Follow the fitting instructions in the user manual before use.
  • Warning: Not for lifting
2001_225mm
2001m_225mm
Select a row from the table below, then click the add to quote button

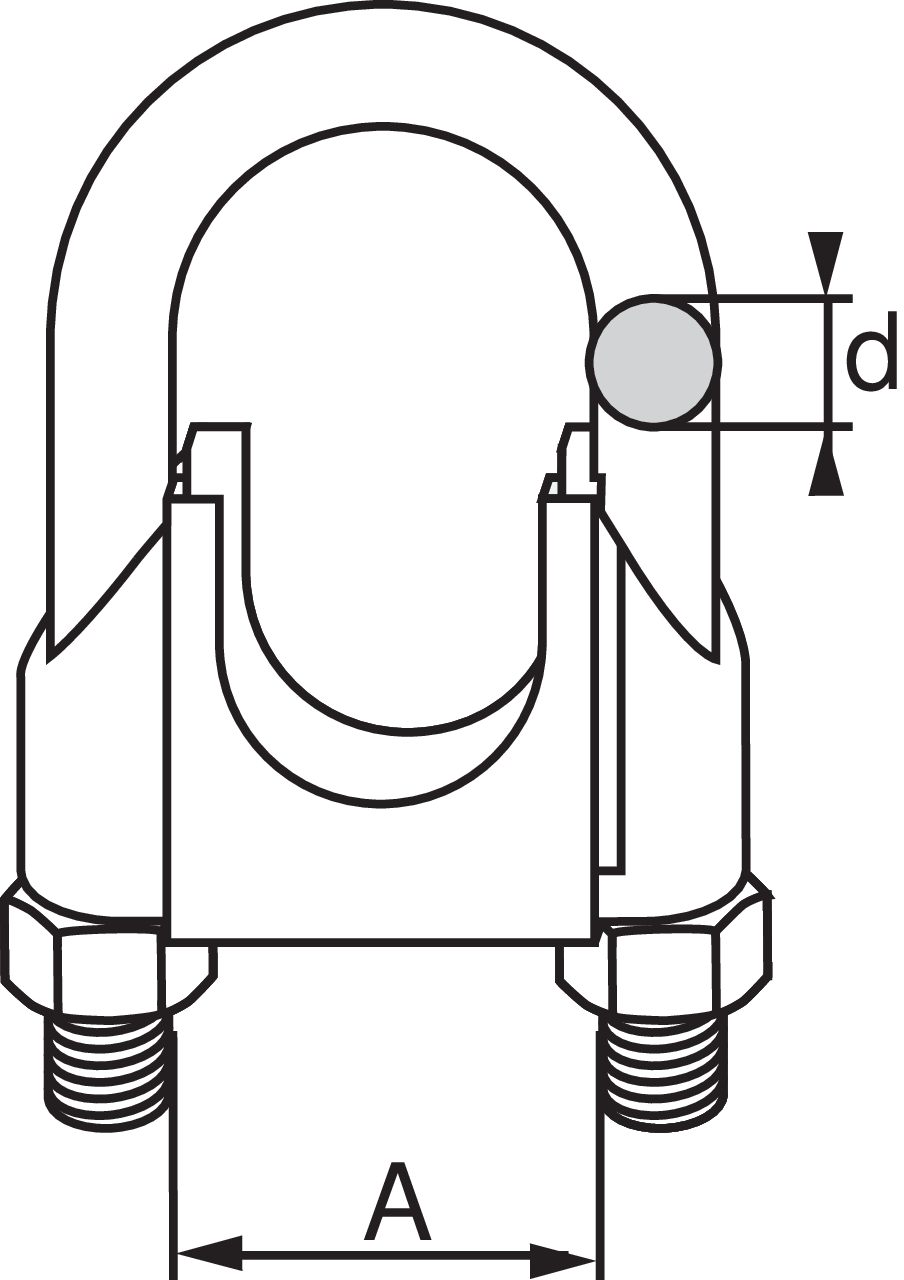

Part Code Diameter
mm
Type A
mm
D
mm
Weight
kg/100pc
VL03 3 2,000 5 4 1.4
VL05 5 2,001 6 5 1.5
VL06 6 2,002 8 5 2.1
VL08 8 2,003 10 6 4.1
VL10 10 2,004 11 8 6.8
VL13 13 2,006 14 10 13
VL16 16 2,008 17 12 21
VL19 19 2,009 20 12 28
VL22 22 2,010 23 14 40
VL26 26 2,011 27 14 44
VL30 30 2,012 32 16 66
VL34 34 2,013 36 16 75
VL40 40 2,014 42 16 104
