Gunnebo Industries





  • Material: Quenched and tempered alloy steel grade 10.
  • Marking: Code and grade.
  • Finish: Painted.
  • Warning: Not to be heat treated.
  • Safety factor: 4:1.
  • Grade: 10
Select a row from the table below, then click the add to quote button

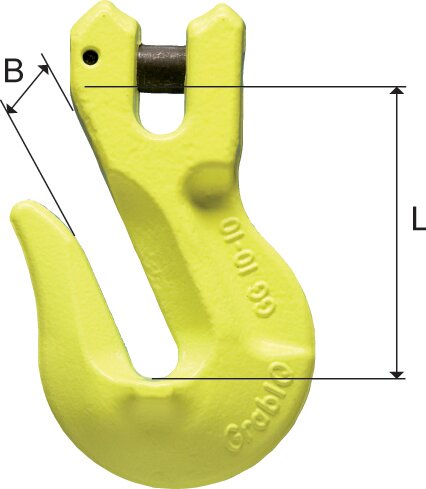

Part Code Code WLL
ton
L
mm
B
mm
Weight
kg
LYKA1008GG GG-8-10 2.5 57 10,5 0.4
LYKA1010GG GG-10-10 4 76 12 0.9
LYKA1013GG GG-13-10 6.7 97 16 1.8
LYKA1016GG GG-16-10 10 124 20 3.1
LYKA1020GG GG-20-10 16 147 26 7
