Haklift

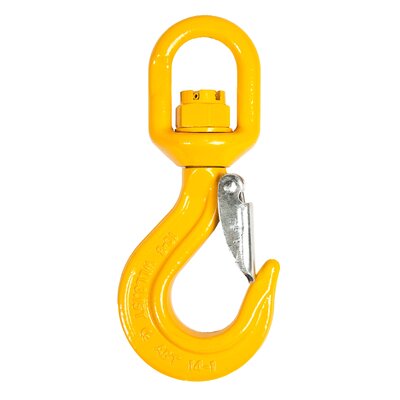

Hook is equipped with spring loaded safety latch. Due to the swivel the hook is easy to align into the wanted direction.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, yellow
  • Standard: EN 1677-1
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8
Select a row from the table below, then click the add to quote button

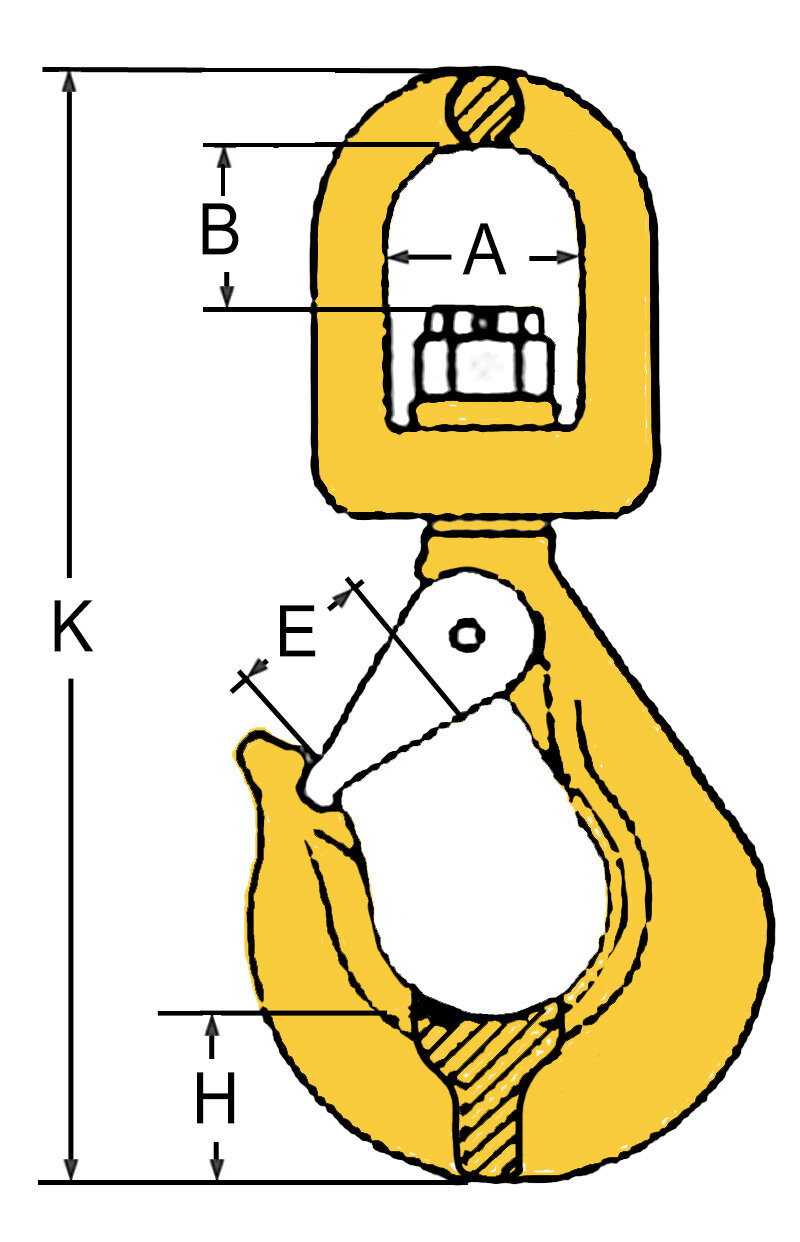

Part Code WLL
ton
For chain dia.
mm
K
mm
E
mm
A
mm
B
mm
Weight
kg
SALKL6 1.12 6 170 22 32.5 22 0.34
SALKL78 2 7/8 210 27 35.5 26 0.85
SALKL10 3.15 10 247 32 42 34 1.54
SALKL13 5.3 13 302 40 50 38.5 3.4
SALKL16 8 16 382 45 61 55 5.36
SALKL20 12.5 20 418 49 72 61 7.4
SALKL22 15 22 527 54 95 95 10.6
SALKL26 21.2 26 610 81 122 115 21.4
