KWB

General: Closes and locks automatically.

  • Marking: According to standard
  • Temperature range: -40 up to 200 degrees
  • Standard: EN 1677-3
  • Safety factor: 4:1.
  • Grade: 12

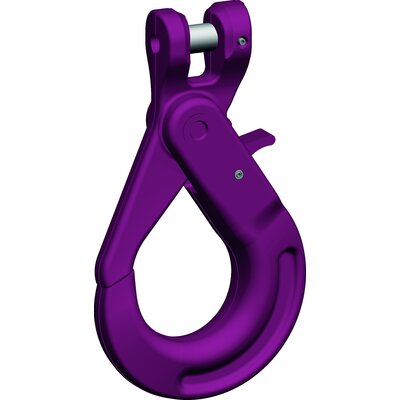

Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

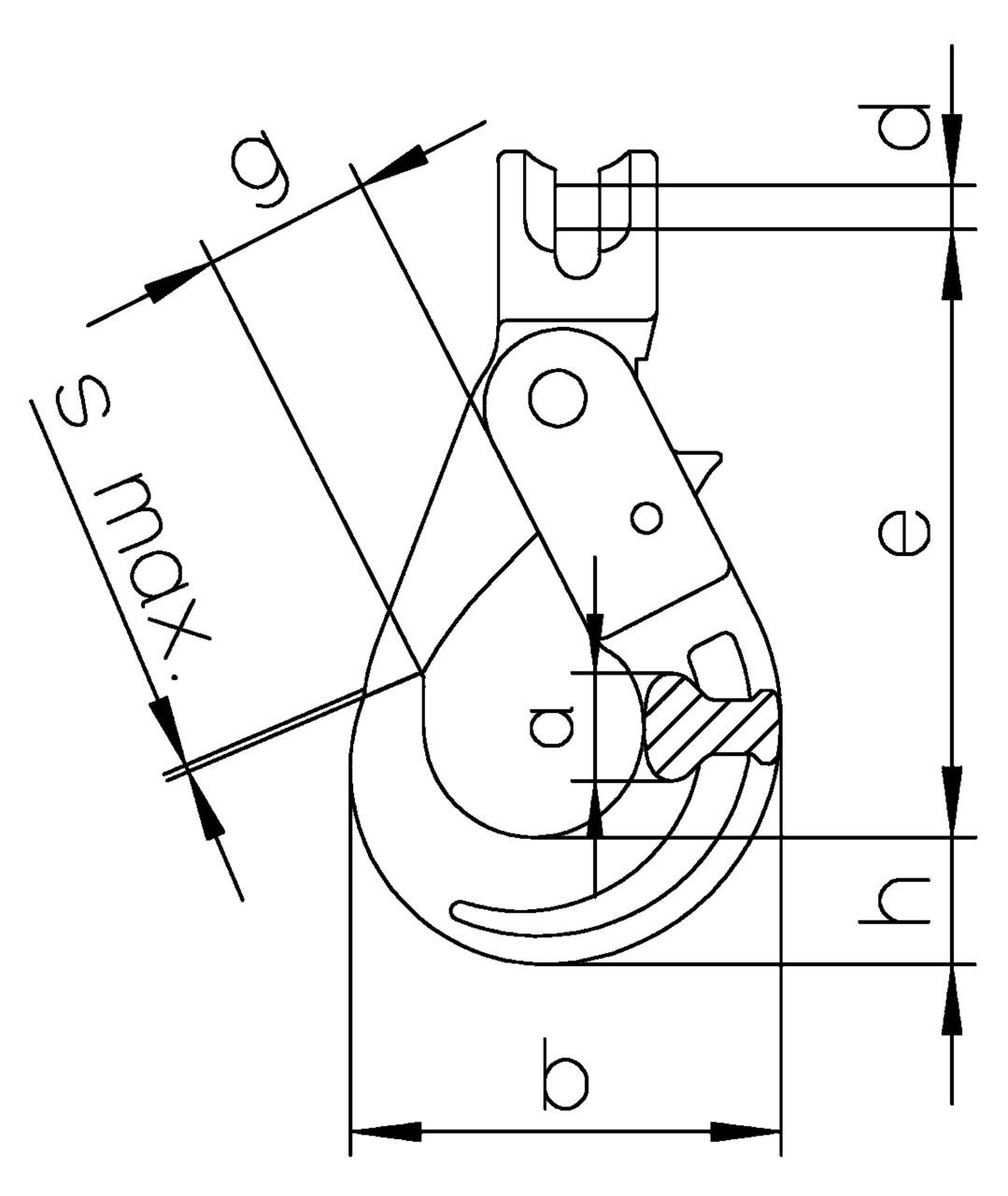

Part Code Code WLL
ton
chain Ø
mm
Chain Ø
inch
e
mm
h
mm
a
mm
b
mm
d
mm
g
mm
s max Weight
kg
VAKH1207 HKSB/SUN7 2,36 7 9/32 125 26 21 92 9,5 32 1 0,93
VAKH1208 HKSB/SUN8 3 8 5/16 124 26 21 92 9,5 32 1 0,93
VAKH1210 HKSB/SUN10 5 10 3/8 143 31 26 115 14 45 1 1,6
VAKH1213 HKSB/SUN13 8 13 1/2 183 42 35 145 17,5 54 2 3,5
VAKH1216 HKSB/SUN16 12 16 5/8 218 51 41 169 21 60 2 6,5
