Haklift

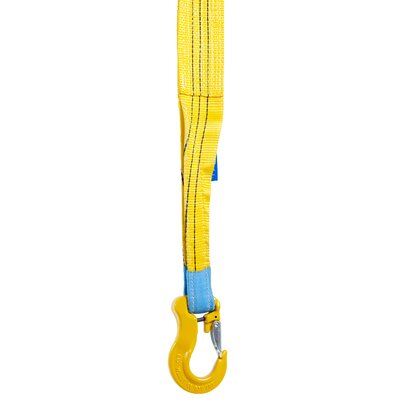

Web sling hook is designed to be used for webbing and round slings. Hook is slided to a belt or a sling.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, color coded
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
K
mm
P
mm
W
mm
T
mm
H
mm
Weight
kg
JOKERKOU1 1 88 25 43 14 20 0.7
JOKERKOU2 2 115 30 52 20 26 1.5
JOKERKOU3 3 118 32 63 26 32 2.3
JOKERKOU5 5 154 43 73 26 38 3.3
JOKERKOU6 6 147 43 70 36 40 4.5
JOKERKOU8 8 200 65 105 40 60 9.7
JOKERKOU10 10 200 65 105 40 60 9.7
