Haklift

Eye grab hook is used for shortening chain legs of a sling. The grab hook is attached to the master link with the same connection link as the chain.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

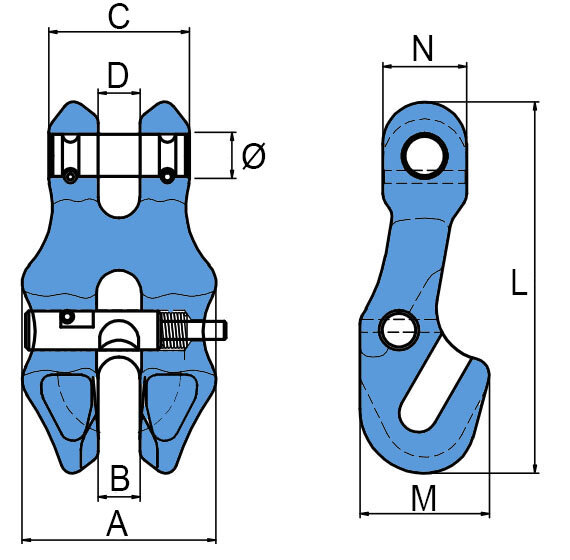

Part Code WLL
ton
For Chain Ø
mm
A
mm
B
mm
C
mm
D
mm
M
mm
N
mm
Ø
mm
L
mm
Weight
kg
LYKATK1006 1.4 6 38 7.5 27 7.5 29 16 7.7 73 0.25
LYKATK1078 2.5 8 50 9.5 33 9.5 36 23 9.5 92 0.41
LYKATK1010 4 10 60 11.5 43 11.5 45.5 26 13.3 115 0.75
LYKATK1013 6.7 13 79 15 55 15 54 34 16.3 149 1.67
LYKATK1016 10 16 98 19 70 19 70 40 19.7 184 4.2
