Haklift

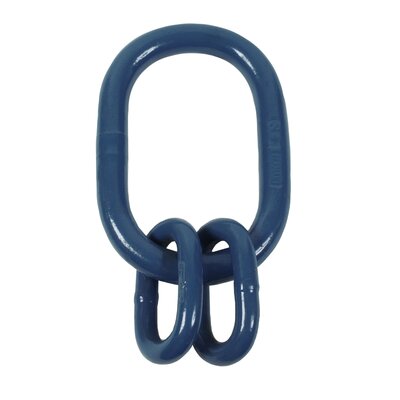

Masterlink for 3- and 4-leg chain sling assemblies.

The chain is attached with grade 100 connecting link.

  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

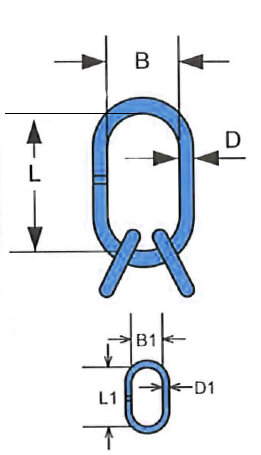

Part Code WLL
ton
For chain mm, 3-4-leg WLL 45- 60°
ton
D
mm
B
mm
L
mm
L+L1 Weight
kg
NRLIA6 3,15 6 2,25 18 75 153 207 1,1
NRLIA8 5,3 8 3,75 22 90 182 252 2,2
NRLIA10 8 10 6 26 100 206 291 3,4
NRLIA13 14 13 10 32 110 232 347 6,1
NRLIA16 21 16 15 36 140 296 436 9,9
NRLIA20 33,6 20 24 45 180 430 670 26,5
NRLIA22 42 22 30 50 200 480 800 32,8

WLL ton is 0-45º
