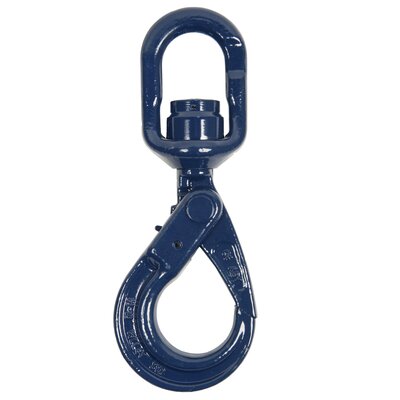

Haklift

The hook locks automatically when lifting starts and rotates easily also with full load.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
For chain dia.
mm
A
mm
B
mm
C
mm
D
mm
E
mm
N
mm
H
mm
K
mm
L
mm
W
mm
Weight
kg
VAKAL1006KL 1.4 6 11 13 37 27 30 15 32 163 196 70 0.67
VAKAL1078KL 2.5 8 13 15 41 35 40 20 39 202 243 90 1.21
VAKAL1010KL 4 10 15 17 48 45 48 26 48 244 289 108 2.2
VAKAL1013KL 6.7 13 17 19 55 52 63 32 57 292 351 138 4.4
VAKAL1016KL 10 16 21 26 62 62 75 38 62 346 422 170 7.48
VAKAL1020KL 16 20 26 28 76 76 80 50 72 396 487 191 13.75
VAKAL1022KL 19 22 33 33 97 97 95 52 97 465 563 208 18.81
VAKAL1026KL 26.5 26 42 42 123 123 107 60 119 565 688 253 31.4
