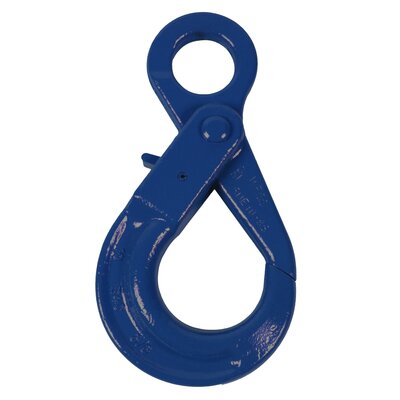

Haklift

The hook locks automatically when lifting starts.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

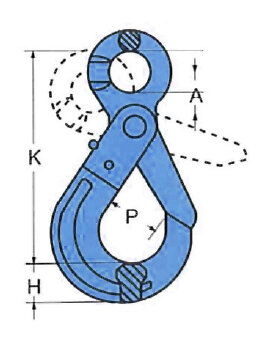

Part Code WLL
ton
For chain dia.
mm
A
mm
P
mm
H
mm
K
mm
Weight
kg
VAKA106 1.4 6 21 28 20 110 0.5
VAKA1078 2.5 8 27 35 26 137 0.9
VAKA1010 4 10 34 45 30 169 1.5
VAKA1013 6.7 13 40 53 40 209 2.7
VAKA1016 10 16 50 62 50 254 5.7
VAKA1020 16 20 60 76 62 277 7.9
VAKA1022 19 22 70 80 66 319 11.2
