Haklift

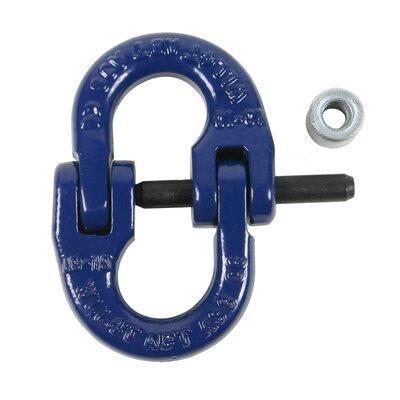

Attachment to the master link with a separate chain, to which the clutch is fixed with a pin. Can be used for normal shortening or for making a loop around the item to be lifted. Equipped with a chain locking pin.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

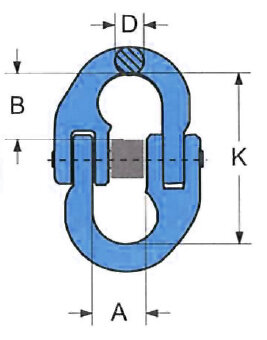

Part Code WLL
ton
For chain dia.
mm
D
mm
K
mm
A
mm
Weight
kg
LLA106 1.4 6 7 44 14 0.1
LLA1078 2.5 8 10 61 18 0.22
LLA1010 4 10 12 72 23 0.45
LLA1013 6.7 13 16 89 27 1.15
LLA1016 10 16 21 103 33 1.75
LLA1020 16 20 24 116 42 2.7
LLA1022 19 22 27 135 48 4.02
