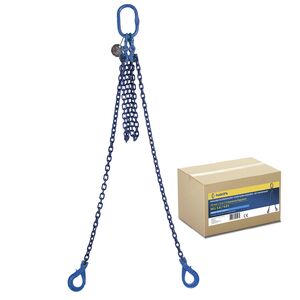

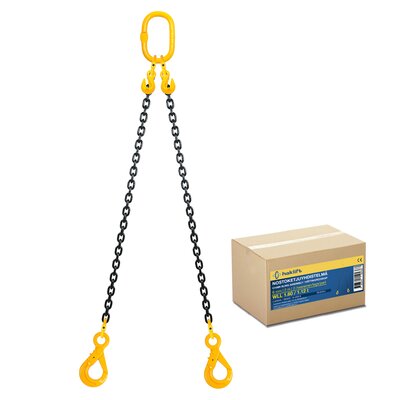

Complete lifting chain assemblie in a box. Assemblies include self-locking safety hooks and shortening hooks. Include a load plate and barcode label on case.
Material:
Steel
Marking:
According to standard, CE-marked
Temperature range:
-40 - (+)200°C / 400°C = WLL 75%
Finish:
Painted, black / yellow
Standard:
EN 818-4
Note:
The length of the chain sling is as shown in the picture (L)
Warning:
Not to be heat-treated
Safety factor:
4:1
Grade:
8
After click on the “Show table” button, you will see the table with all technical details about the product.
Technical data
Chain Sling Grade 8
EN 818-4
Safety Factor 4:1
Chain ø
1-part
2-part
3-4-part
Endless
Straight pull
Choke hitch
Basket hitch
0°−45°
45°−60°
0°−45°
45°−60°
Straight pull
Choke hitch
Basket hitch
mm
Working load limit (WLL) in tons
6
1,12
0,90
2,24
1,60
1,12
2,36
1,70
2,24
1,80
4,48
7
1,50
1,20
3,00
2,12
1,50
3,15
2,24
3,00
2,50
6,00
8
2,00
1,60
4,00
2,80
2,00
4,25
3,00
4,00
3,15
8,00
10
3,15
2,50
6,30
4,25
3,15
6,70
4,75
6,30
5,00
12,6
13
5,30
4,25
10,6
7,50
5,30
11,20
8,00
10,60
8,50
21,20
16
8,00
6,30
16,00
11,20
8,00
17,00
11,80
16,00
12,50
32,00
19
11,20
9,00
22,40
16,00
11,20
23,60
17,00
22,40
18,00
44,80
20
12,50
10,00
25,00
17,00
12,50
26,50
19,00
26,00
20,00
50,00
22
15,00
12,00
30,00
21,20
15,00
31,50
22,40
30,00
23,60
60,00
26
21,20
17,00
42,40
30,00
21,20
45,00
31,50
42,40
33,50
84,80
32
31,50
25,20
63,00
45,00
31,50
67,00
47,50
63,00
50,00
126,00
Factor (KL)
1
0,8
2
1,4
1
2,1
1,5
2
1,6
4
When a multi-leg sling is used in a chocker hitch, reduce the values by 20%
