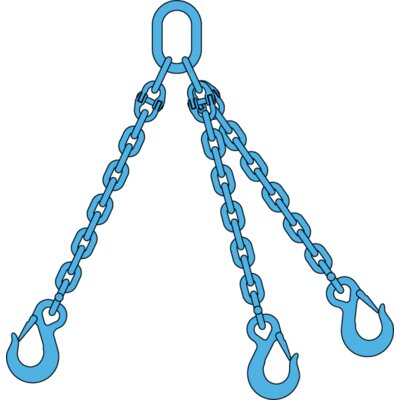

3-legs chain sling assembly equipped with latch hooks and grab hooks. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.
The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hooks.
- Material: Steel
- Marking: CE-marked
- Temperature range: -29 - (+)205°C
- Finish: Painted, blue
- Warning: Not to be heat-treated
- Safety factor: 4:1
- Grade: 10
The last two numbers of the product code refer to the length (L-length): 01 = 1,0 m.
