Haklift

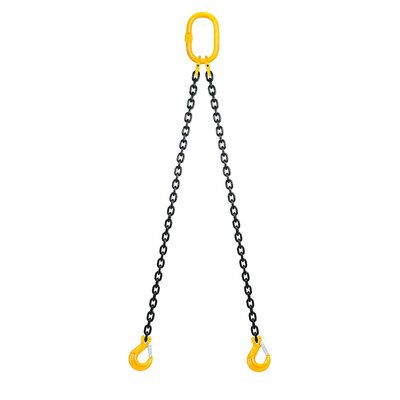

2-legs chain sling assembly equipped with safety hooks. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.

The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hooks.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Temperature range: -40 - (+)200°C / 400°C = WLL 75%
  • Finish: Painted, black / yellow
  • Standard: EN 818-4
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 8

The last two numbers of the product code refer to the length (L-length): 01 = 1,0 m.

Select a row from the table below, then click the add to quote button
Part Code Chain size
mm
WLL 45- 60°
ton
WLL 0-45°
ton
NKS06201 6 1,12 1,6
NKS07201 7 1,5 2,12
NKS08201 8 2 2,8
NKS10201 10 3,15 4,25
NKS13201 13 5,3 7,5
NKS16201 16 8 11,2
NKS20201 20 12,5 17
NKS22201 22 15 21,2
NKS26201 26 21,2 30
NKS32201 32 31,5 45
