Haklift

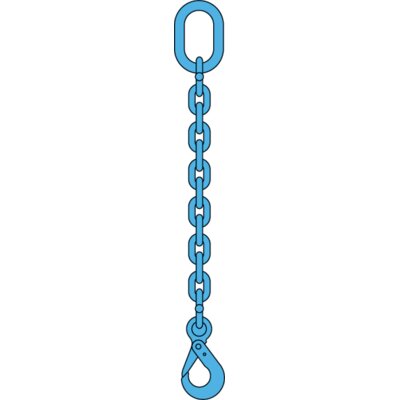

1-Leg chain sling assembly equipped with safety hook and grab hook. Alternative ends are also available, e.g. foundry hooks, shackles etc. Slings are equipped with a load plate.

The L-dimension is measured from the inside of the top of the master ring to the inside of the bottom of the hook.



  • Material: Steel
  • Marking: CE-marked
  • Temperature range: -29 - (+)205°C
  • Finish: Painted, blue
  • Warning: Not to be heat-treated
  • Safety factor: 4:1
  • Grade: 10

The last two numbers of the product code refer to the length (L-length): 01 = 1,0 m.

kwb_klx-176_225mm_clevis
Select a row from the table below, then click the add to quote button
Part Code WLL
kg
NKVE06101L 1,4
NKVE08101L 2,5
NKVE10101L 4
NKVE13101L 6,7
NKVE16101L 10
NKVE20101L 16
NKVE22101L 19
